VS Racing Gen3 44mm / 50mm / 60mm External Wastegates

SKU: VSR-44MM
$230.00
Tax included

Size

Delivery and Shipping

All orders over $350 and shipped within Australia are FREE STANDARD SHIPPING!!!

WE SHIP INTERNATIONALLY!

We also offer instore pickup at: Demon Pro Parts, 1/107 Wells Rd Chelsea Heights, Vic, 3196

Need your parts ASAP? We also Offer Express Shipping at Checkout!

Want it EVEN FASTER?! Call our team today about Overnight Shipping on 03 8766 8888

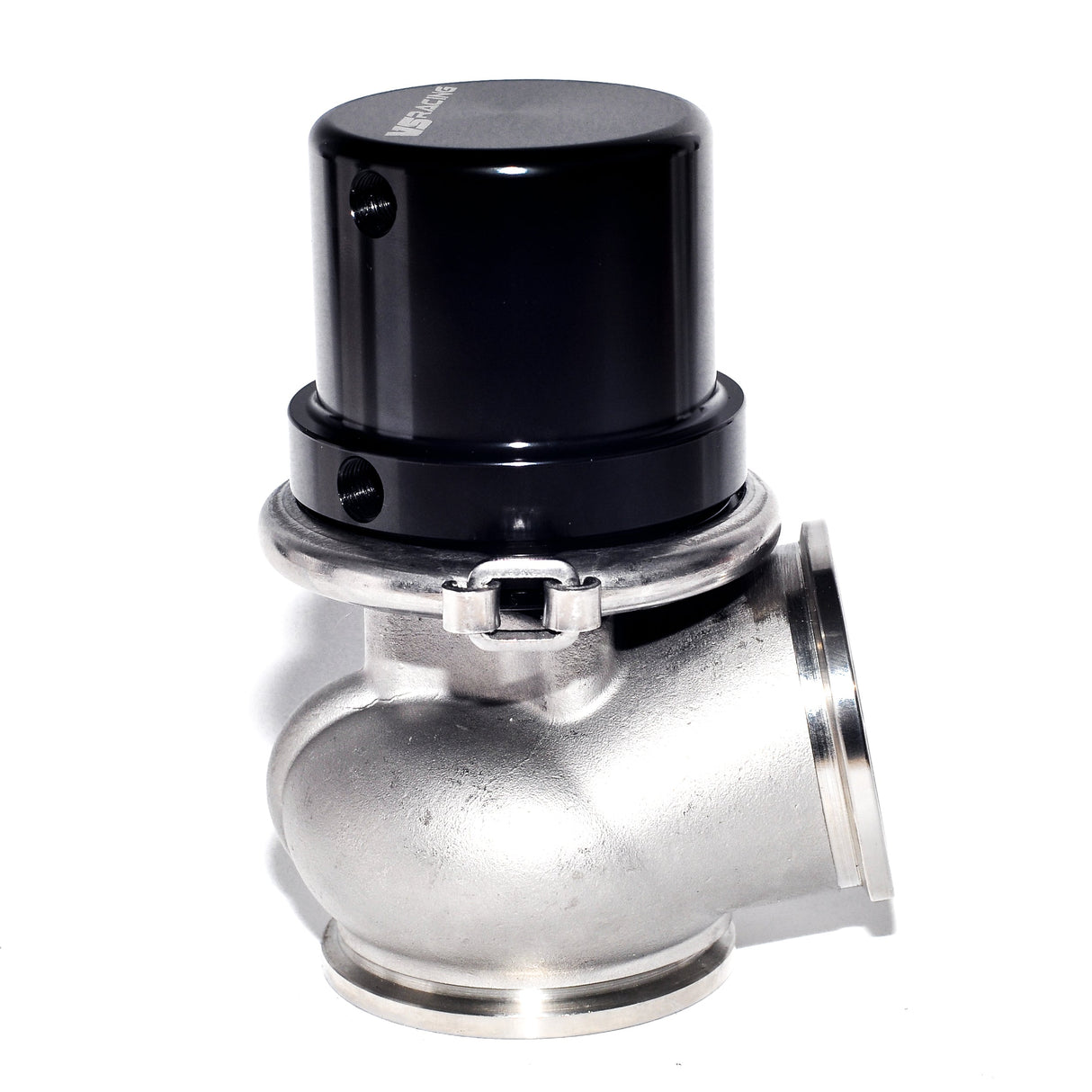

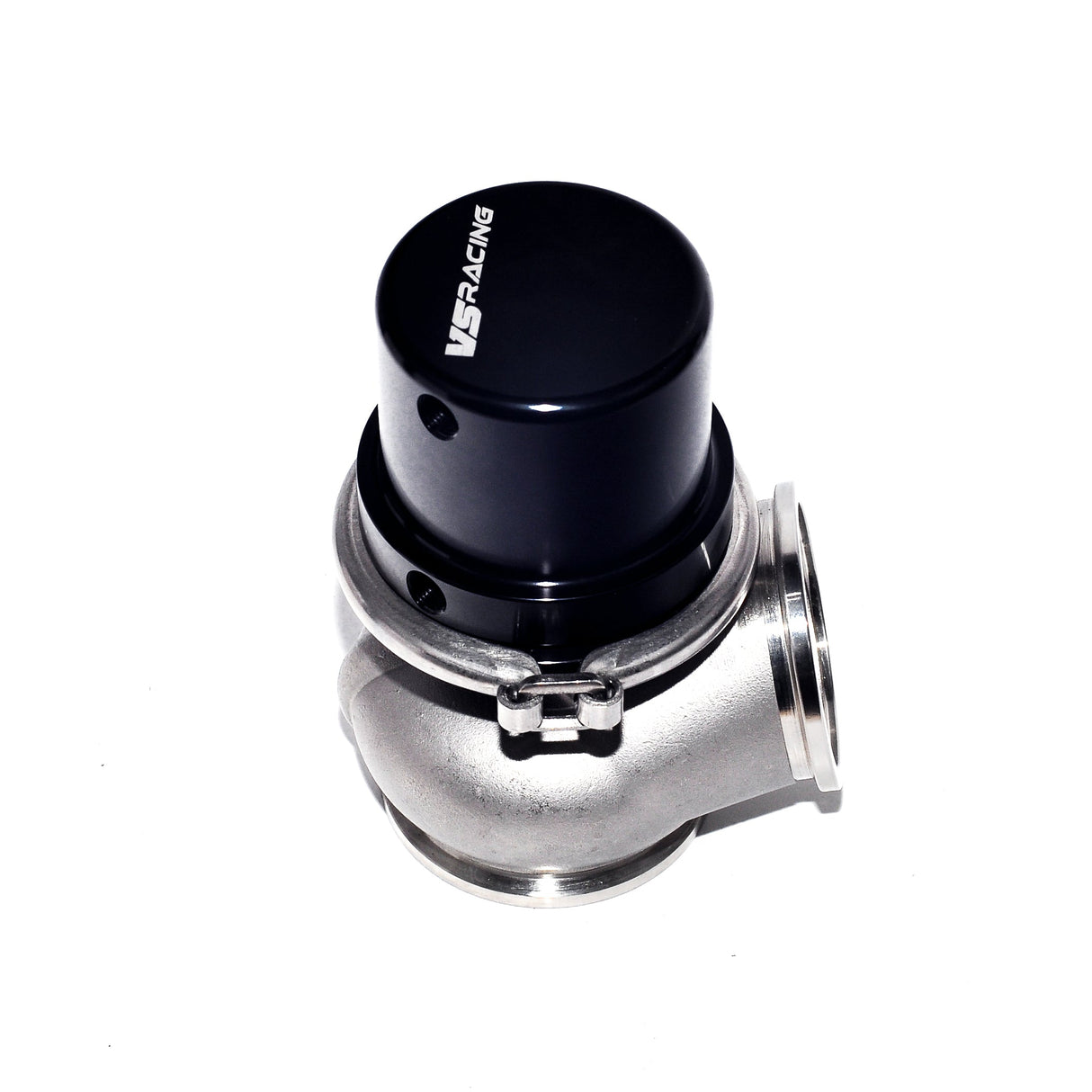

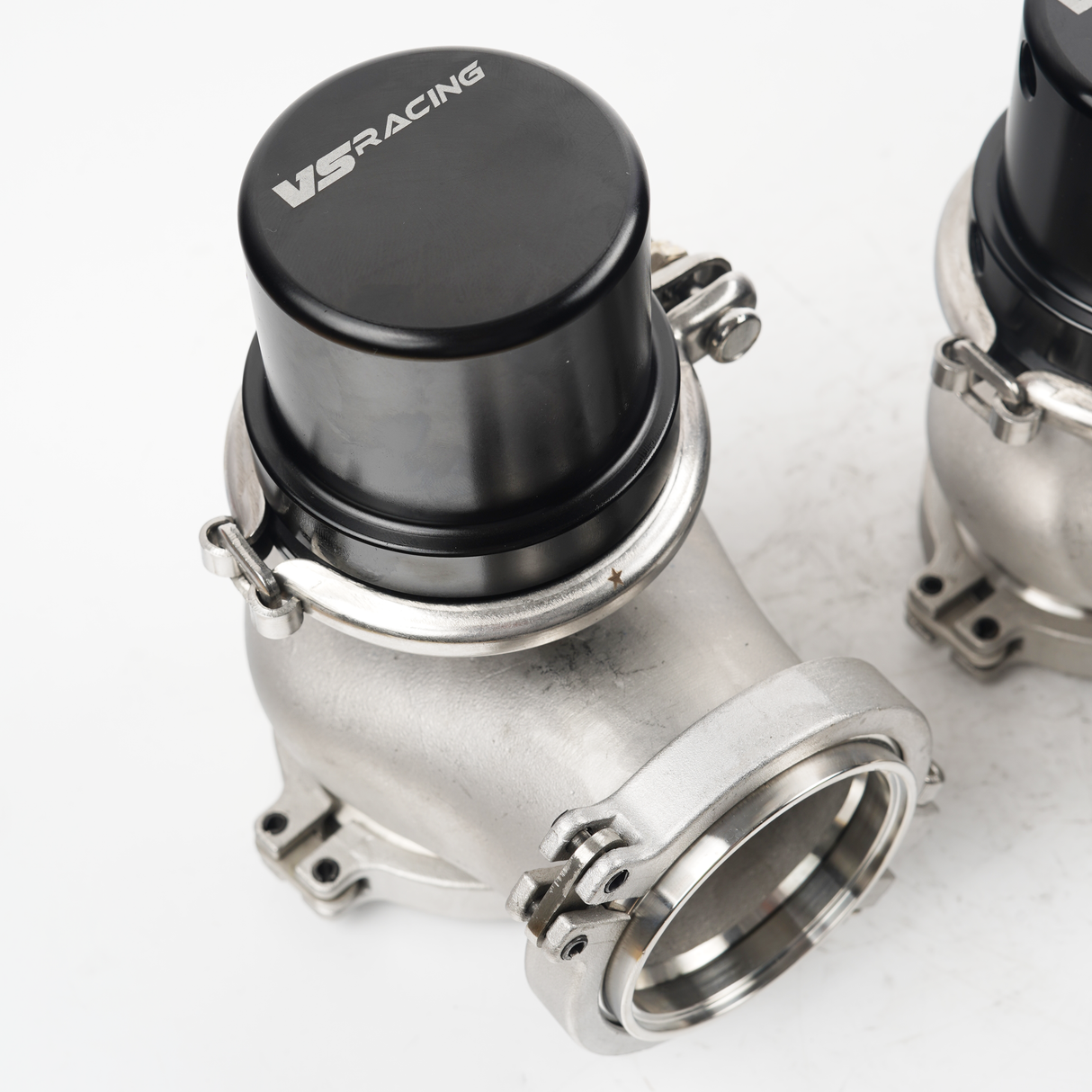

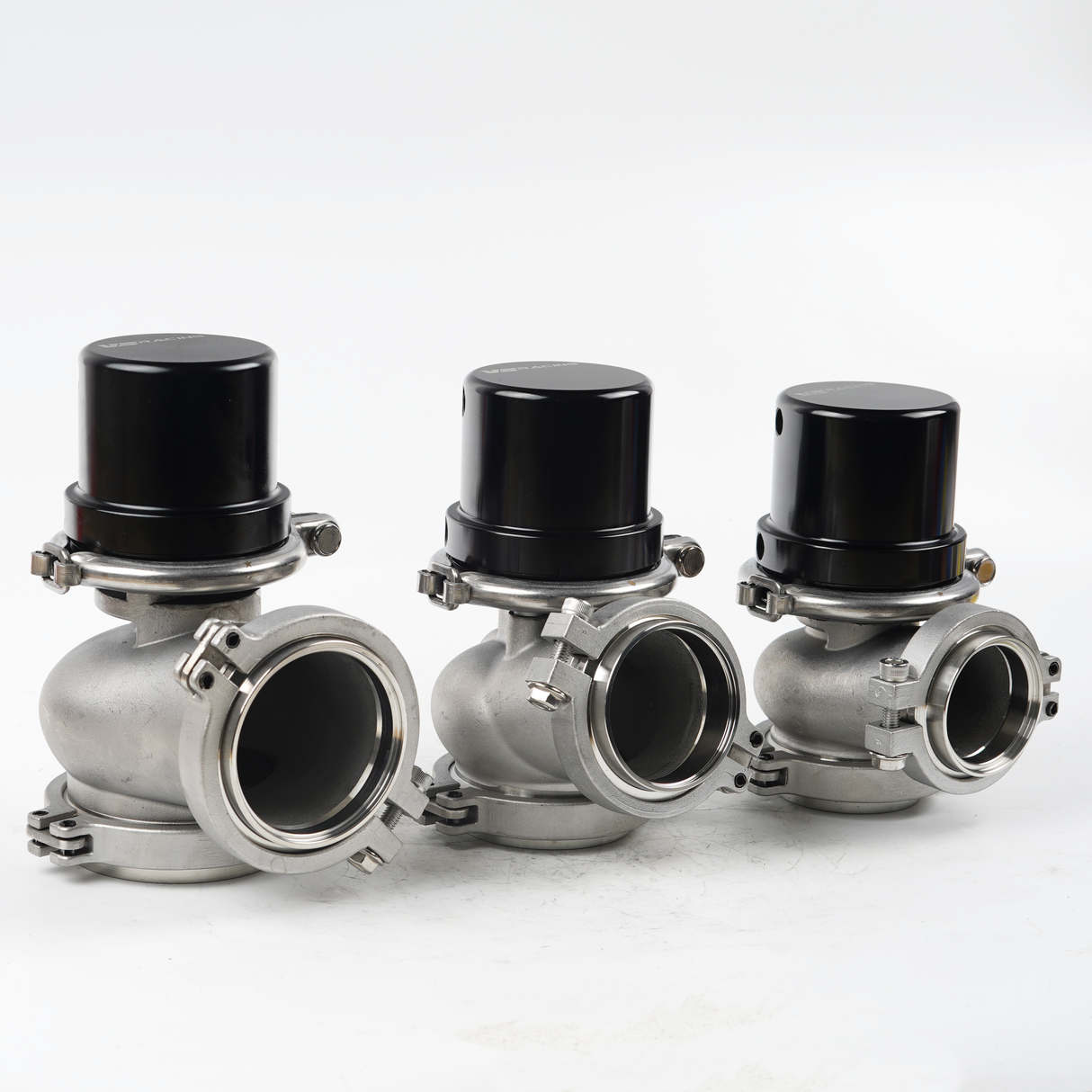

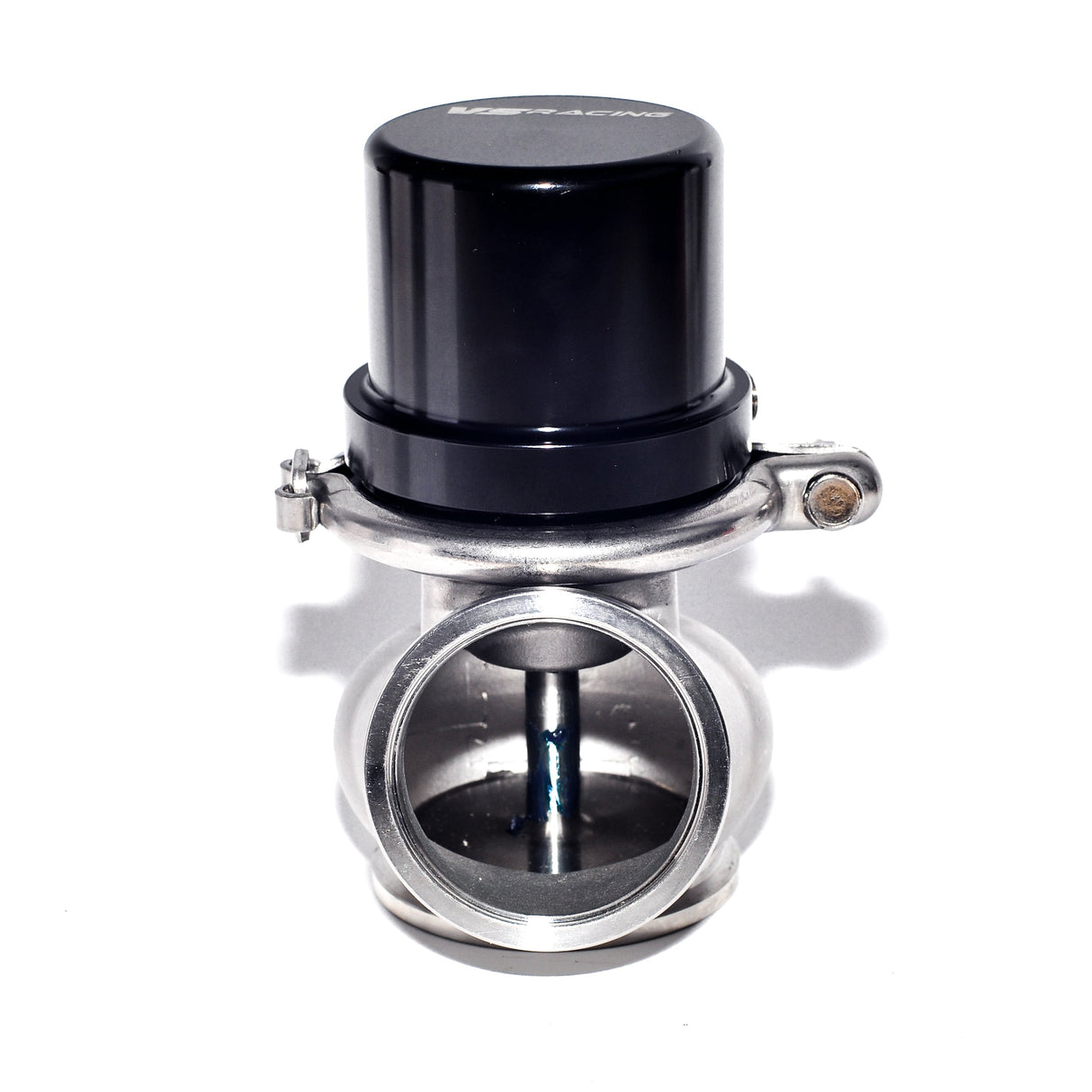

VS Racing Gen3 44mm, 50mm & 60mm Wastegate

The Newly Revised Gen 3 Wastegate Utilizes a New Piston/O-Ring Design Which Has Even Greater C02 And Boost Control Stability With Dome Pressure Over Your Standard Diaphragm. The Gen 3 Unit Has A V-Band Wastegate Head To Allow For Quick Spring Changes. All Gen 3 Units Have Cast Stainless Steel Bodys, Inconel Valves & Alloy Heads.

Notes:
This Unit Will Come With Two Springs Pre-Installed Which Are 4 And 6psi For Combined 10psi Out Of The Box. This Unit Also Is Equipped With 2 Upper Airports And 2 Lower Airports For Ease Of Installation And Configuration With a Dome Pressure Sensor.

Instructions for use:
Please Note That You Should Always Make Sure To Install Your Fire Ring In The Base Of The Gate. Without The Fire Ring You Will Create a Leak Between The v-Band And Wg Flange.

If You Are Using Spring Pressure – Hook You Pressure Source Incoming Usually From Turbo To Bottom Port. You Will Have 2 Ports To Select From Choose Based On Your Best Location And Cap The Other Port. Leave One Hole Vented On The Top And Cap The Other Port.

Electronic/Dome Pressure Setup If You Are Using a Solenoid, You Will Tee Your Input To The Bottom Port Coming From Your Pressure Source And The Other Port Will Be Capped.  Output Of Your Solenoid Will Go To One Of The Top Ports. You Will Cap The Other Top Port If Not Being Used For a Dome Pressure Sensor.
