Hi Flow Turbo For Toyota Landcruiser 200 Series VDJ200 1VD-FTV


CCT STAGE ONE TURBO

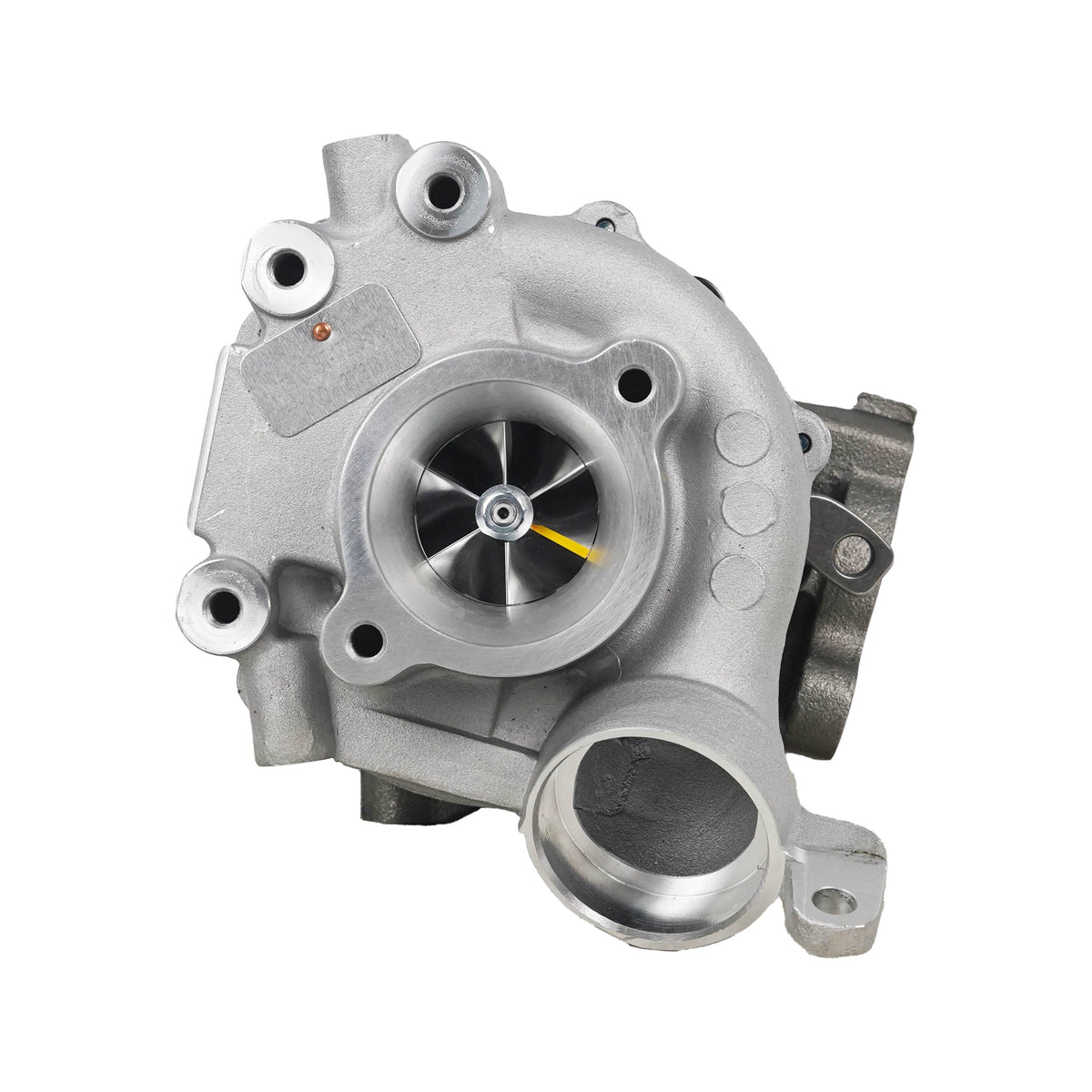

All CCT Stage One Turbochargers are assembled, balanced and air flow calibrated in house. Using slim hub technology and extended base tip design will increase the flow rate of the turbo up to 15%. The billet wheel is much lighter and stronger than a regular cast wheel, meaning it will spool up at a faster rate and also reduce pressure on the thrust bearing as having less weight will reduce the enersure thrust front to back.

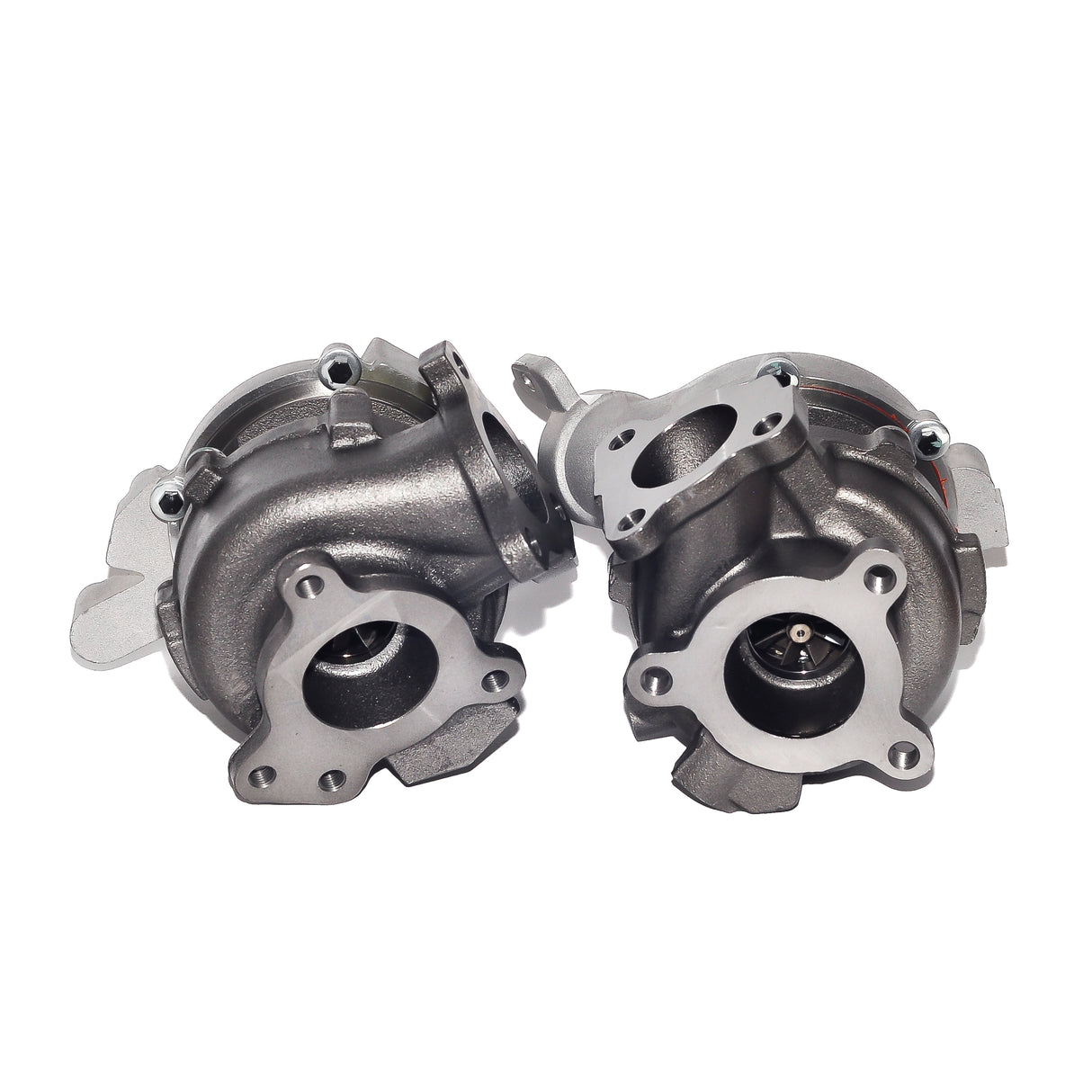

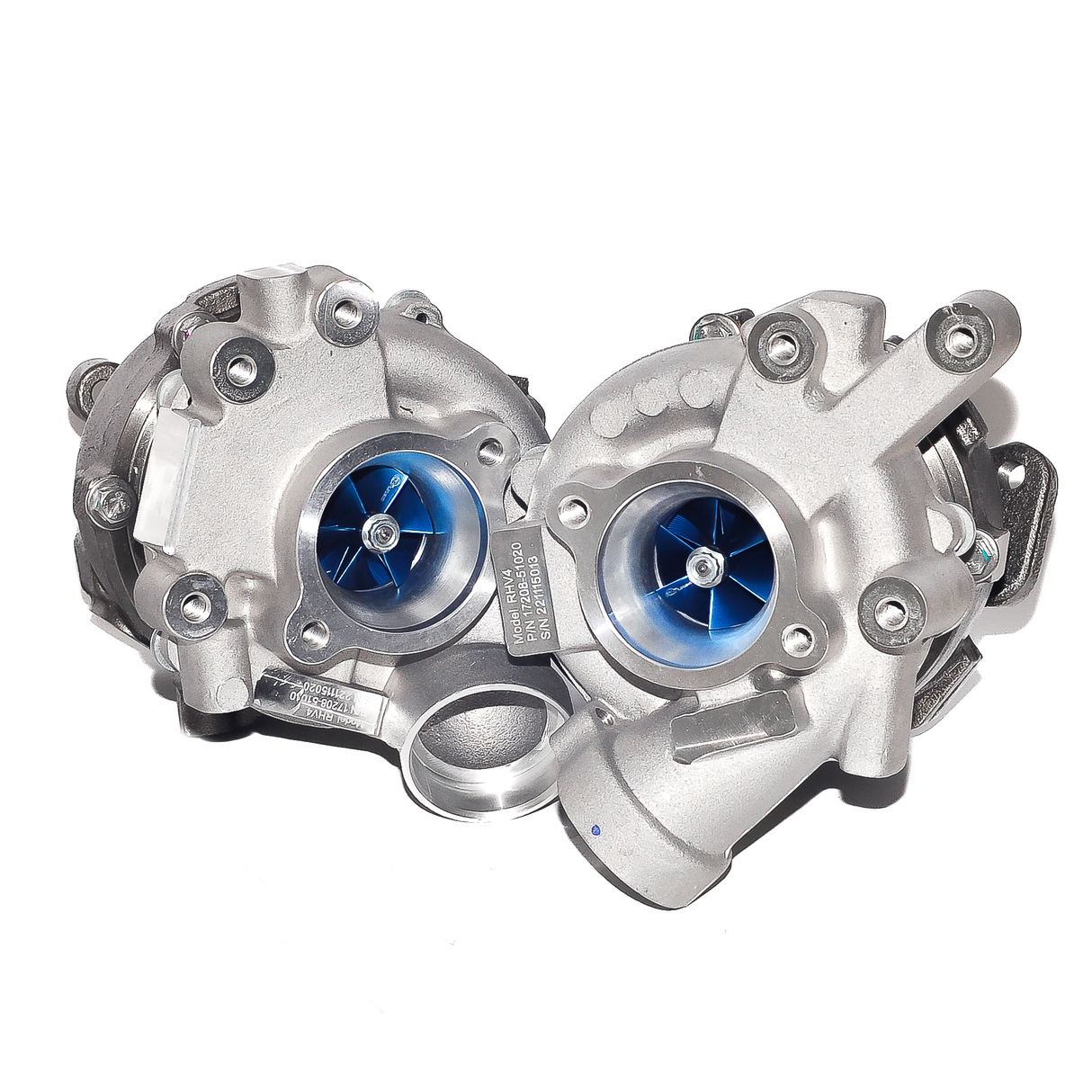

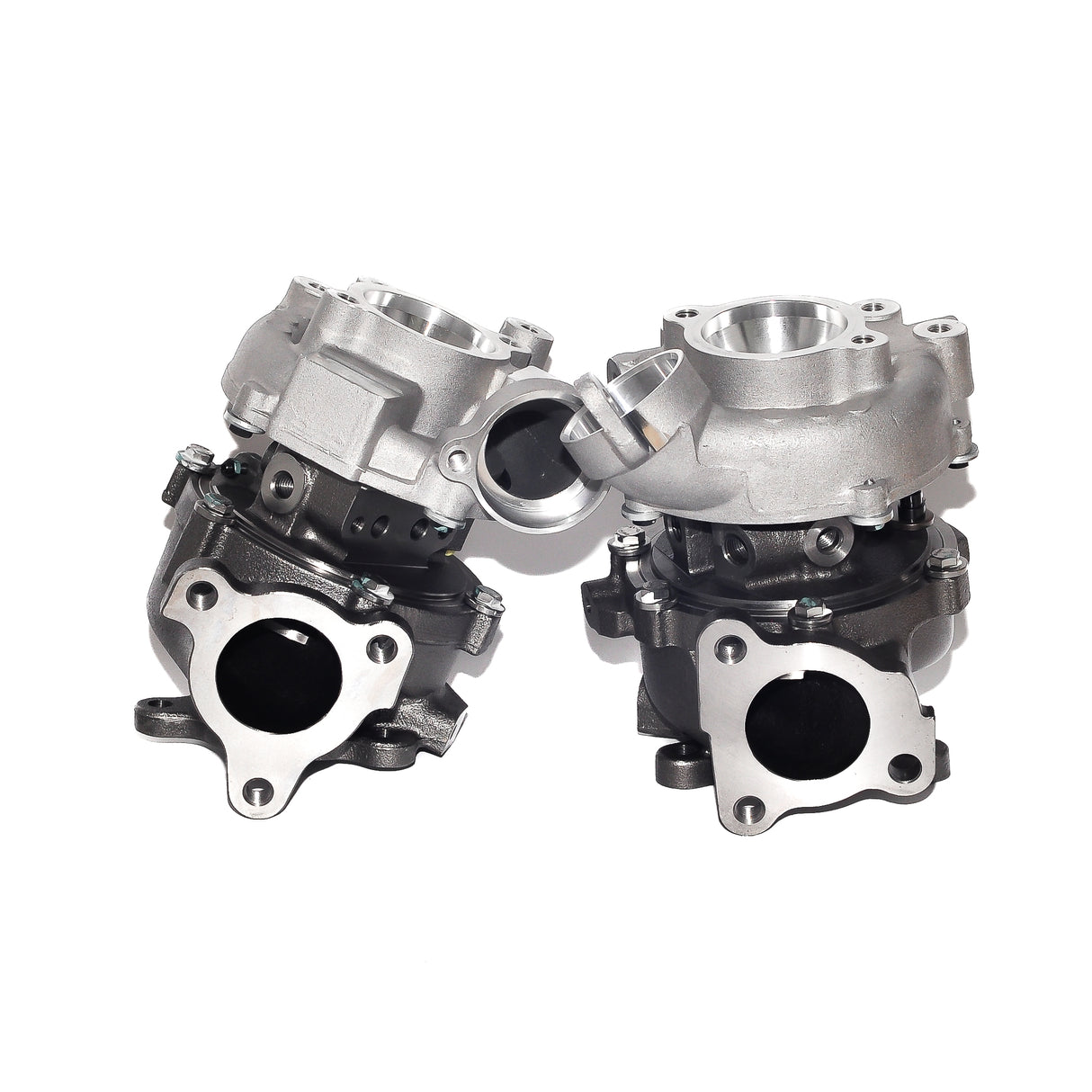

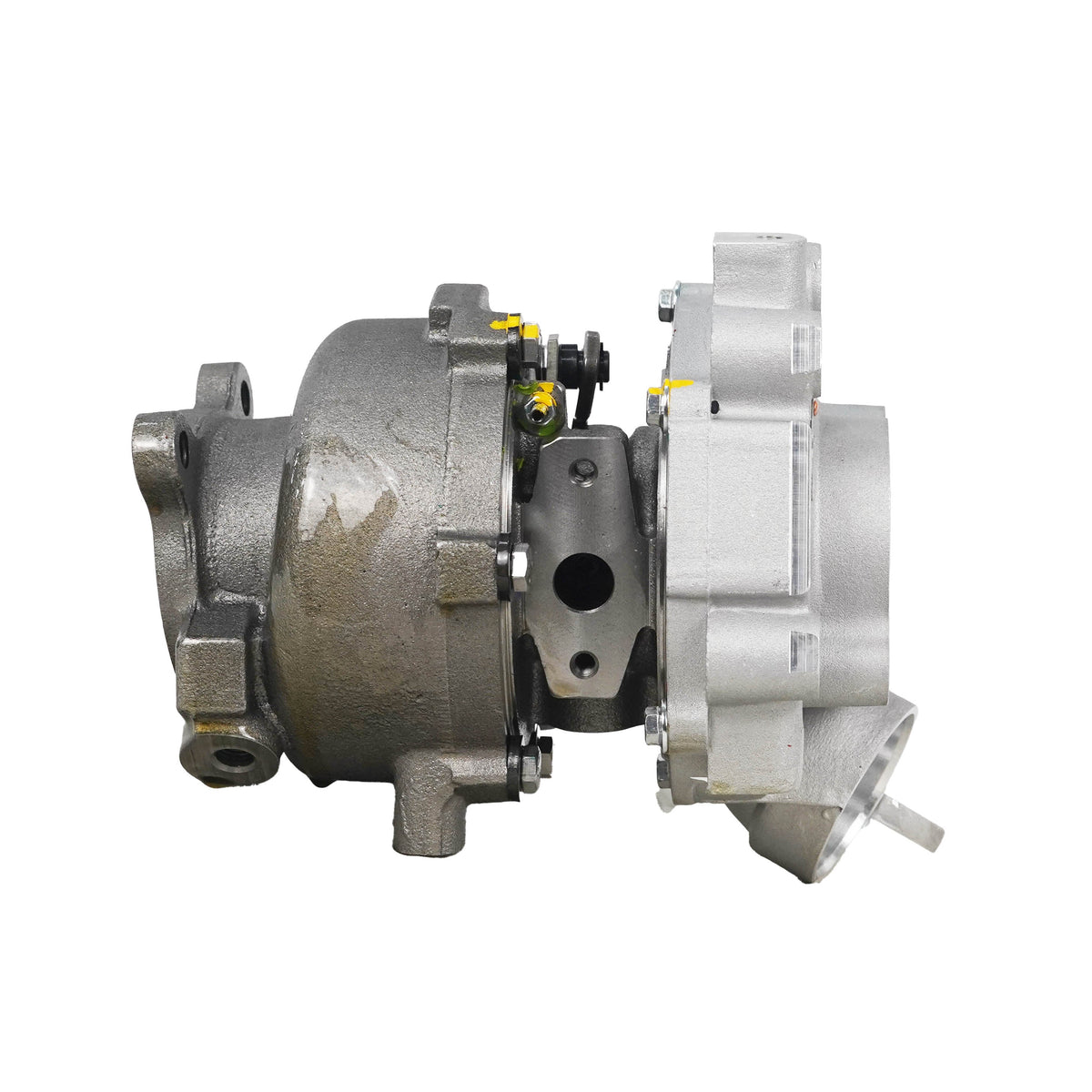

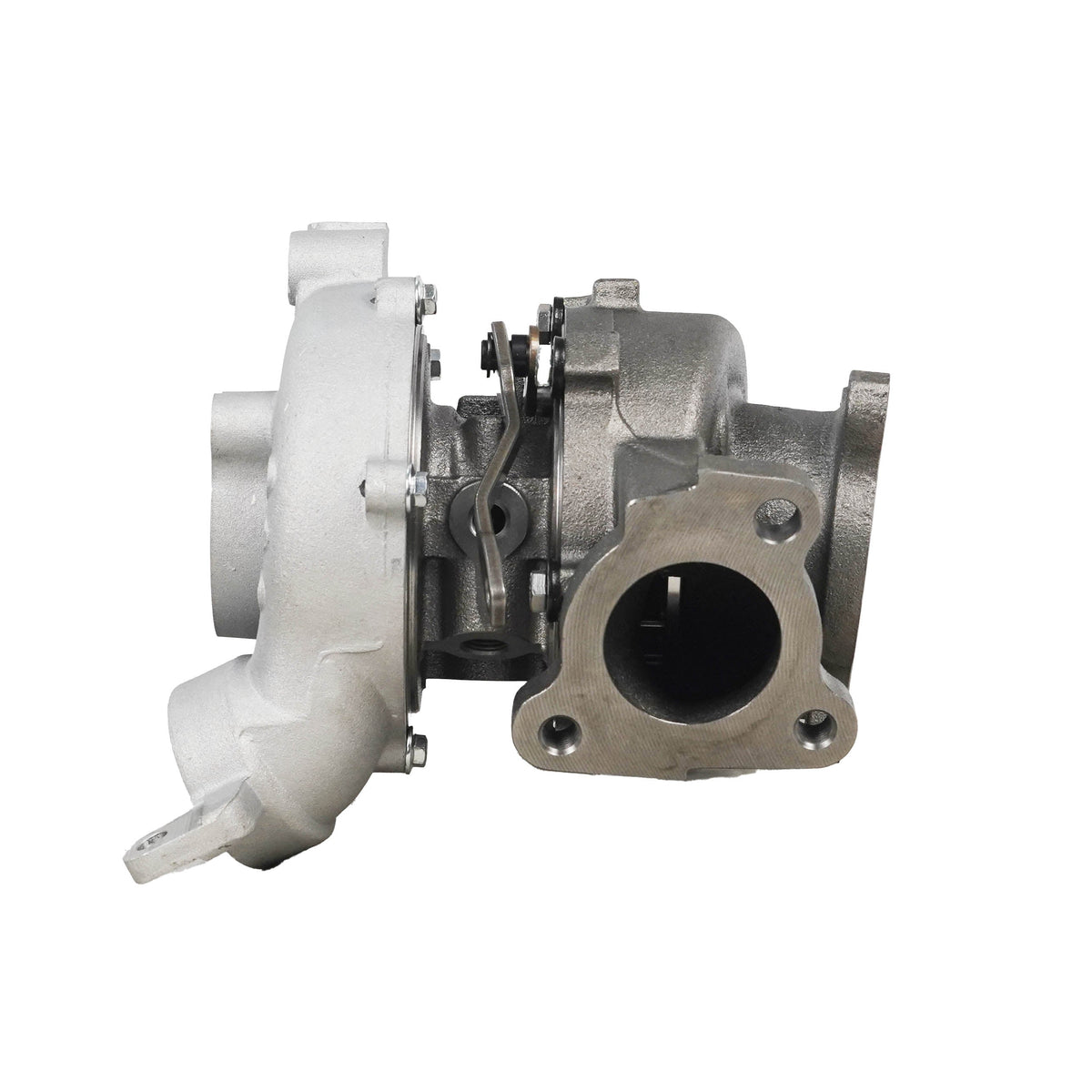

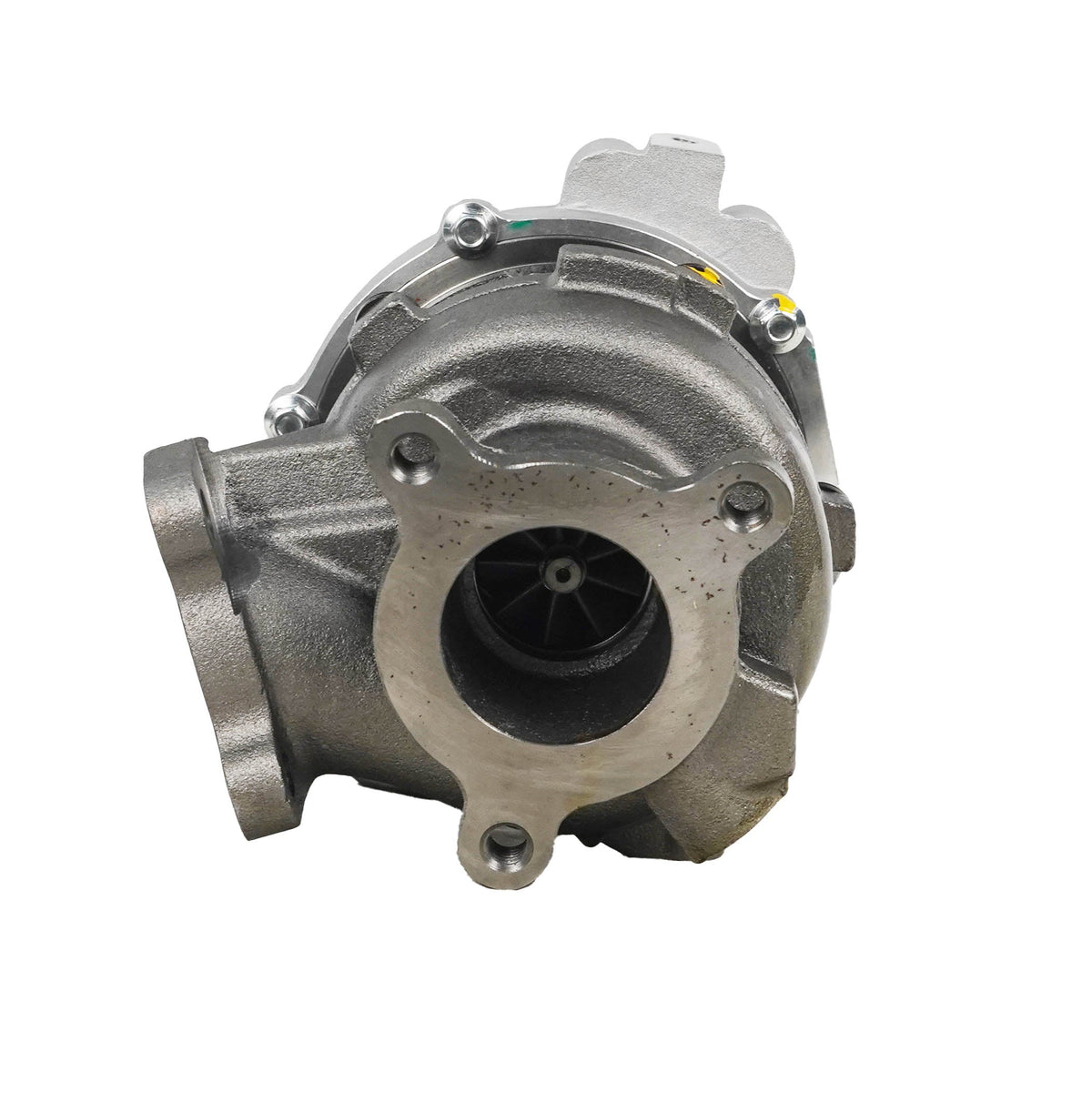

This is a quality replacement stage one Twin-turbocharger to suit Toyota Landcruiser 200 Series Common rail 1VD-FTV

Passenger Side Turbocharger:
Brand: CCT TURBO
Model: RH4V
Part No: 17208-51011 / 1720851011 / VDD20027
OEM No: 17208-51011 / VED20027 / 17208-51010 / 17208-51011 / 17201-78032 / 1720178032
Vehicle: Toyota Landcruiser VDJ200 Series Common rail 1VD-FTV


Drivers Side Turbocharger:
Brand: CCT TURBO
Model: RH4V
Part No: VDD20026 / VED20026
OEM No: 17201-51020 / 17201-51021
Vehicle: Toyota Landcruiser VDJ200 Series Common rail 1VD-FTV.

Do I need to tune my car with CCT stage one turbo fitted?
Upgrading turbo chargers can be a hard decision on many customers, on most late model diesel vehicles upgrading turbocharger systems can involve many more modifications EG, Exhaust and tuning the vehicle as bigger turbochargers will often throw not work as a bolt on.

CCT's Stage One range is ideal for those people don’t want to spend thousands on exhaust an tuning modifications as we specially modify these turbochargers to work as a bolt on upgrade, although tuning can be done after installation and greater results will be seen as our testing has proved, on our 2013 Mazda BT50 3.2L with only a 3 inch exhaust system and standard tune, first dyno pull with a stock turbocharger made 103KW and 360NM, Second dyno pull with our CCT Stage 1 and standard tune made 115KW and 400NM which is an increase of 12% more power and 11% more torque with our turbocharger upgrade, third dyno run with our CCT Stage 1 turbocharger and a full remap  made 140KW and 500 NM with is an increase of 36% (37KW) of power and 39% (140NM) of torque to the wheels.


If you are not sure if this product is correct for your vehicle, please call us on 03 8766 8888 or send your VIN to demonproparts@outlook.com
