Turbocharger Gasket & Fastener Kit for Nissan Patrol GU Y61 3.0L ZD30

Turbocharger Gasket & Fastener Kit for Nissan Patrol GU Y61 3.0L ZD30

Turbocharger Gasket and Fastener kit for Nissan Patrol GU Y61 3.0L ZD30 MY00-17.

Manufactured to OEM spec, the Hot gaskets are multi-layer, the cold gaskets are water resistant pressed paper and the studs, washers & nuts are Zinc Coated.

Part No: rsg-turbo-zd30
Vehicle: Nissan Patrol GU (Y61) MY00-17
Engine: 3.0L ZD30 DI / CRD turbo diesel

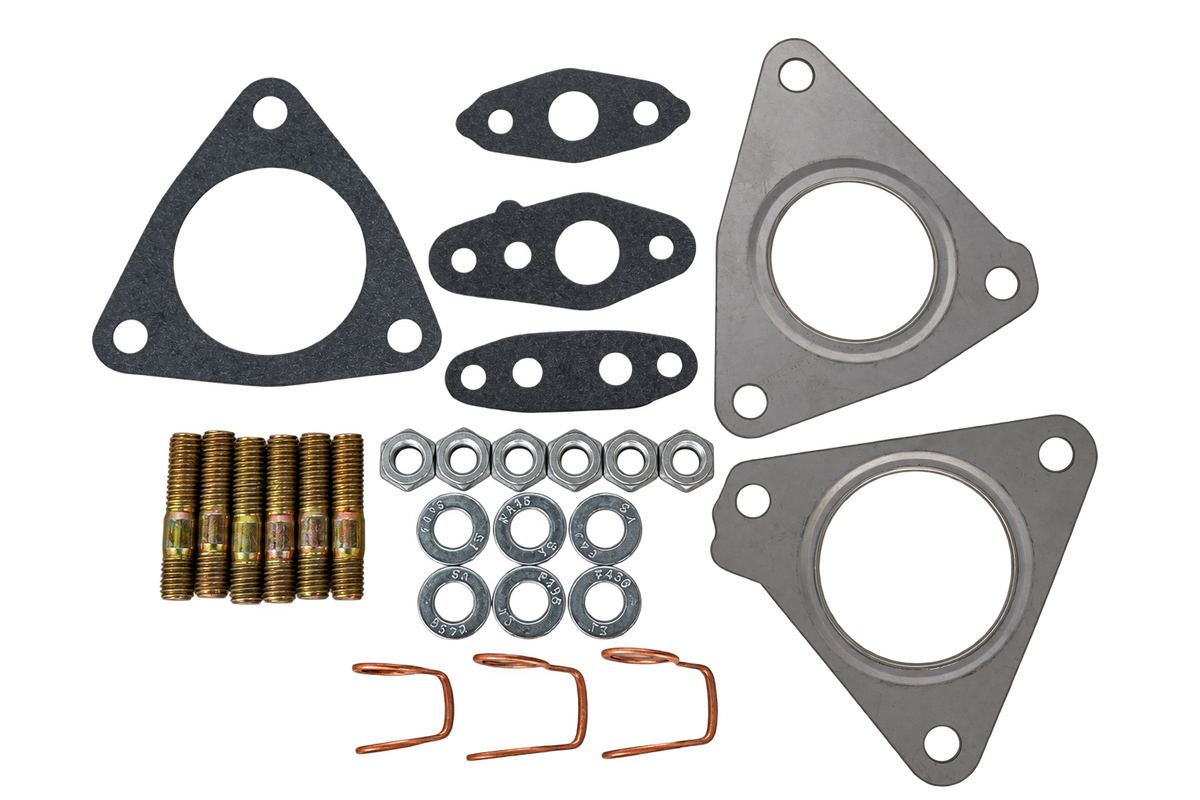

Included:

• MLS manifold to turbo gasket
• MLS turbo to dump gasket
• Turbo inlet gasket
• Turbo oil feed flange gasket
• Turbo coolant flange gasket
• Oil feed pipe copper washer (Block end)
• Oil drain pipe gasket (Block end)
• Coolant feed and return copper washers (Block ends)
• Manifold to turbo studs, washers and nuts × 3

• Turbo to dump studs, washers and nuts x 3


Extra Information: This gasket kit is suitable for DI and CRD models, as such late model DI and all CRD models will have left over gaskets as they don't run coolant.
