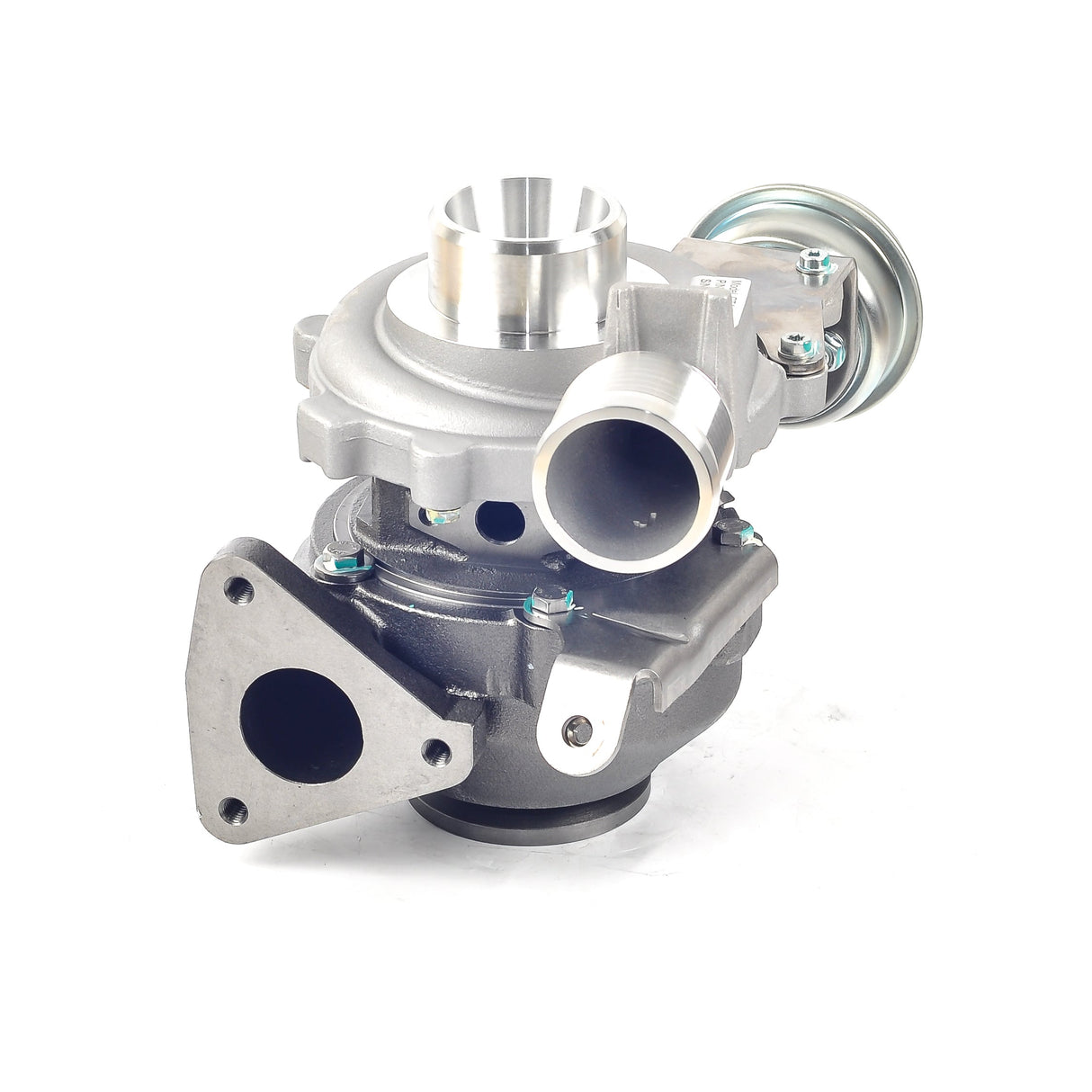

Turbo Charger for Suzuki Grand Vitara 1.9L 760680 with Gaskets
- Quality-tested turbo assembly
- For factory ECU settings
- 12-month warranty
Pre-order
Available for pre-order. Contact us for availability.
Sold out. Ask us about restock.
Pickup available at Demon Pro Parts
Usually ready in 1 hour
Delivery and Shipping
Delivery and Shipping
WE SHIP INTERNATIONALLY!
We also offer instore pickup at: Demon Pro Parts, 1/107 Wells Rd Chelsea Heights, Vic, 3196
Need your parts ASAP? We also Offer Express Shipping at Checkout!
Want it EVEN FASTER?! Call our team today about Overnight Shipping on 03 8766 8888
Turbo Charger for Suzuki Grand Vitara 1.9L 760680 with Gaskets
Contact us for availability.
Standard Replacement Turbo
Replace your original turbo and keep the vehicle on its standard setup. Reference numbers are in Product details.
-
Direct bolt-on replacement
Designed around the original mounting layout for the listed application.
-
Factory-matched airflow
Airflow calibration focused on factory-style operating characteristics.
-
High-speed VSR balancing
High-speed balancing for smooth turbo operation.
Product Details
GTA1746LV, Water & Oil Cooled, Vacuum Actuator
Product Details
GTA1746LV, Water & Oil Cooled, Vacuum ActuatorTurbo Model & Part Numbers
- Turbo model
- GTA1746LV
Reference Numbers
- OEM part numbers
- 8200506509B
- 8200683856
- 8200732948A
- 8200781610
- 1390067JG1
- Turbo part numbers
- 760680-0002
- 760680-5002
- 760680-5002S
- 760680-0003
- 760680-5003
- 760680-5003S
Show all 15 turbo numbers
- 760680-0004
- 760680-5004
- 760680-5004S
- 760680-0005
- 760680-5005
- 760680-5005S
- 760680-0006
- 760680-5006
- 760680-5006S
Turbo and OEM numbers are usually on the label or tag of your old turbo.
Technical Specifications
- Cooling
- Water & Oil Cooled
- Actuator type
- Vacuum Actuator
What’s Included
- Actuator
- Included
- Gasket set
- Included
Common Questions
Fitment, part numbers, what’s in the box and more
Common Questions
Fitment, part numbers, what’s in the box and more
Will this turbo fit my vehicle?
Compare your old turbo’s part number with the numbers in Product details, or contact our team and we’ll confirm.
Which part numbers does this turbo replace?
OEM and manufacturer part numbers are listed in Product details. Match them against your existing turbo before ordering.
What’s in the box?
- Turbocharger
- Actuator
- Gasket set
Do I need an ECU tune?
No. It’s made to run on the engine’s original settings.
What should I check before fitting it?
Find and fix what caused the old turbo to fail. Common causes are oil starvation or contaminated oil, foreign objects, intake or boost leaks, exhaust or DPF restrictions and boost-control faults.
What warranty does it have?
12 months, under the Demon warranty policy.
