Stage 2 CCT Upgrade Hi-Flow Turbo Charger To Suit Toyota Toyota Hilux | Prado 1KZ-TE 3.0L CT12B with Gaskets
- Quality-tested turbo assembly
- ECU tuning recommended
- 24-month warranty
Pre-order
Available for pre-order. Contact us for availability.
Sold out. Ask us about restock.
Pickup available at Demon Pro Parts
Usually ready in 1 hour
Delivery and Shipping
Delivery and Shipping
WE SHIP INTERNATIONALLY!
We also offer instore pickup at: Demon Pro Parts, 1/107 Wells Rd Chelsea Heights, Vic, 3196
Need your parts ASAP? We also Offer Express Shipping at Checkout!
Want it EVEN FASTER?! Call our team today about Overnight Shipping on 03 8766 8888
Stage 2 CCT Upgrade Hi-Flow Turbo Charger To Suit Toyota Toyota Hil...
Contact us for availability.
Stage 2 High-Flow Turbo
A larger high-flow upgrade for a performance build. For Toyota Hilux and Landcruiser Prado with the 1KZTE 3.0L engine. See the Vehicle Fitment Guide for models and years.
-
Higher-flow performance
Developed for builds that need more airflow than a standard replacement.
-
Greater power potential
Focused on supporting higher-output performance builds.
-
Built for increased load
An upgraded turbo configuration intended for increased operating demands.
Product Details
CT12B, +4mm Billet + Slim Hub + High Blades + Extended Tips, Water & Oil Cooled
Product Details
CT12B, +4mm Billet + Slim Hub + High Blades + Extended Tips, Water & Oil CooledTurbo Model & Part Numbers
- Turbo model
- CT12B
Reference Numbers
- OEM part numbers
- 17201-67040
- 17201-67010
- 17201-67020
- Turbo part numbers
- 17201-67010
- 17201-67020
- 17201-67040
Turbo and OEM numbers are usually on the label or tag of your old turbo.
Technical Specifications
- Compressor wheel
- +4mm Billet + Slim Hub + High Blades + Extended Tips
- Turbine wheel
- 9-Blade Inconel 713C Hi-Flow Turbine Wheel
- Bearing
- Enhanced 360° Thrust Bearing
- Cooling
- Water & Oil Cooled
- Actuator type
- Pneumatic Wastegate Actuator
- Max Boost
- 15 PSI
The most the hardware is built for. Set your boost target to suit the engine, fuel system and tune.
What’s Included
- Actuator
- Included

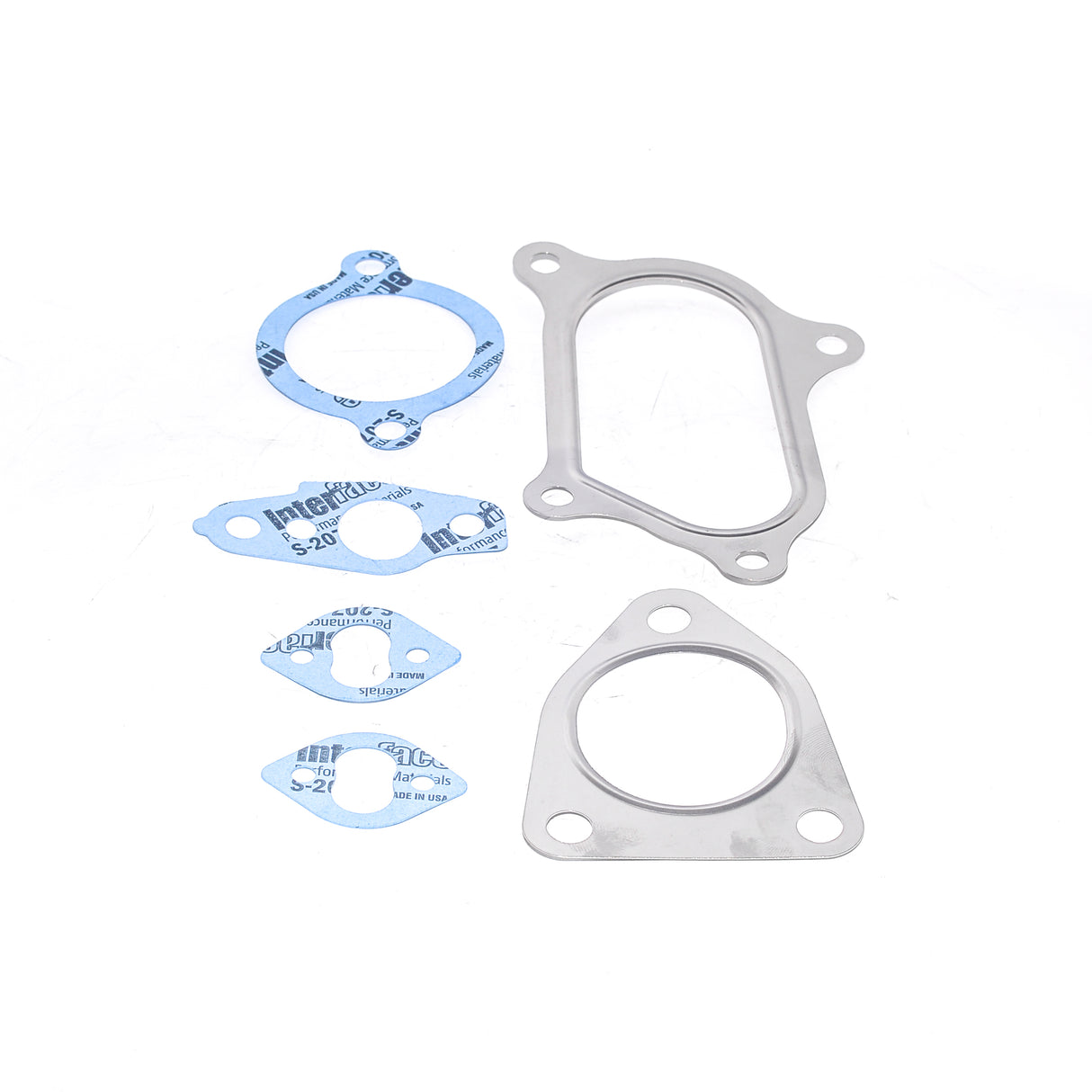

- Gasket set
- Included
Vehicle Fitment Guide
4 Toyota applications
Vehicle Fitment Guide
4 Toyota applications-
Toyota Hilux1999–2005
-
Toyota Landcruiser Prado2003–2006
-
Toyota Landcruiser Prado1993–1996
-
Toyota Landcruiser Prado1996–2002
Some models use more than one turbo. Match your part number in Product details, or contact our team for help.
Compare Options
Standard, Gen 1, Stage 2
Compare Options
Standard, Gen 1, Stage 2| StandardFactory reference | Gen 1Street-focused upgrade | Stage 2This turboLarger high-flow upgrade |
|---|---|---|
| Compressor wheel | ||
| StandardFactory Cast Compressor Wheel | Gen 19 blades Performance Billet Wheel | Stage 2+4mm Billet + Slim Hub + High Blades + Extended Tips |
| Turbine wheel | ||
| StandardFactory Turbine Wheel | Gen 1Hybrid Turbine Wheel | Stage 29-Blade Inconel 713C Hi-Flow Turbine Wheel |
| Bearing | ||
| Standard360° Thrust Bearing | Gen 1360° thrust bearing | Stage 2Enhanced 360° Thrust Bearing |
| Max Boost | ||
| Standard10 PSI | Gen 115 PSI | Stage 215 PSI |
Common Questions
Fitment, part numbers, fitting and more
Common Questions
Fitment, part numbers, fitting and more
Will this turbo fit my vehicle?
For Toyota Hilux and Landcruiser Prado. Check your model, year and part number in the Vehicle Fitment Guide.
Which part numbers does this turbo replace?
OEM and manufacturer part numbers are listed in Product details. Match them against your existing turbo before ordering.
Is it a direct replacement?
It’s made to fit the listed applications in place of the original turbo. ECU tuning is recommended to get the most from the upgrade; discuss supporting parts with your installer.
What’s in the box?
- Turbocharger
- Actuator
- Gasket set
Where can I find the turbo specifications?
See the wheel and bearing details in Product details.
What is the Max Boost?
Max Boost for the Stage 2 hardware is 15 PSI. Set the final boost to suit the engine’s condition, fuel system, supporting parts and tune.
Do I need an ECU tune?
ECU tuning is recommended to make full use of this upgrade. Discuss the tune and supporting modifications with your installer.
Which option should I choose?
Choose Stage 2 for a larger high-flow upgrade. ECU tuning is recommended to make full use of it. The options we sell for this turbo are in Compare Options.
What warranty does it have?
24 months, under the Demon warranty policy.
