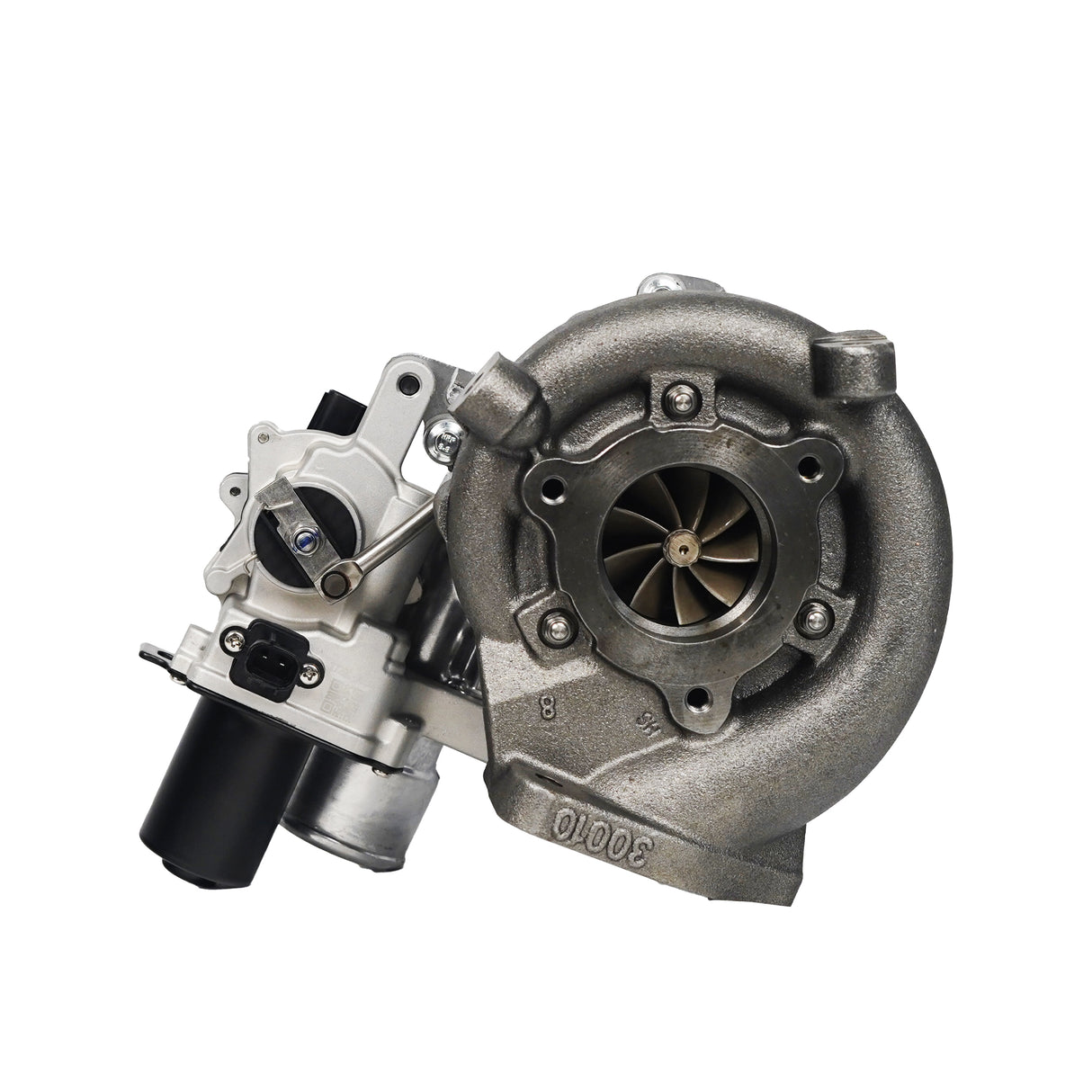

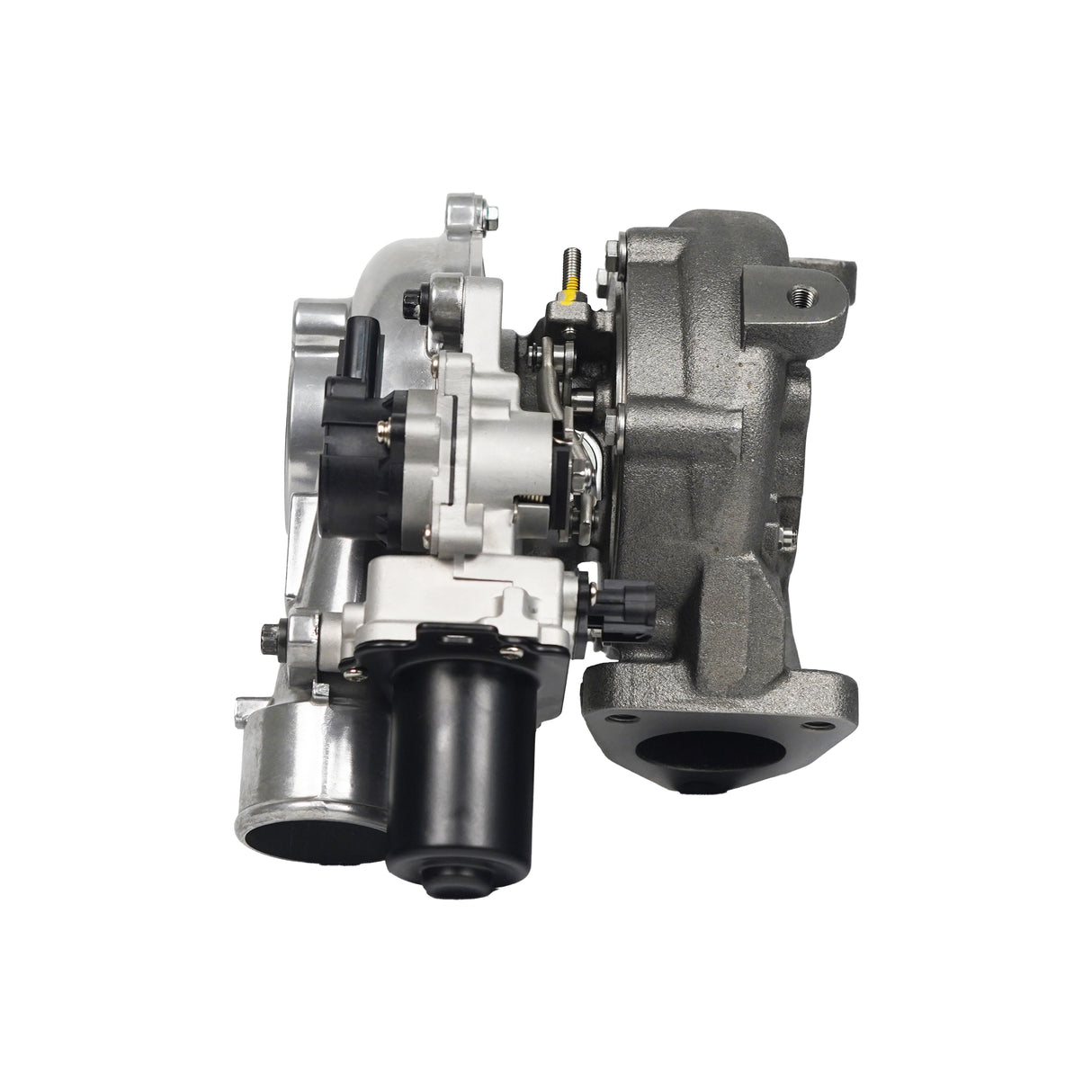

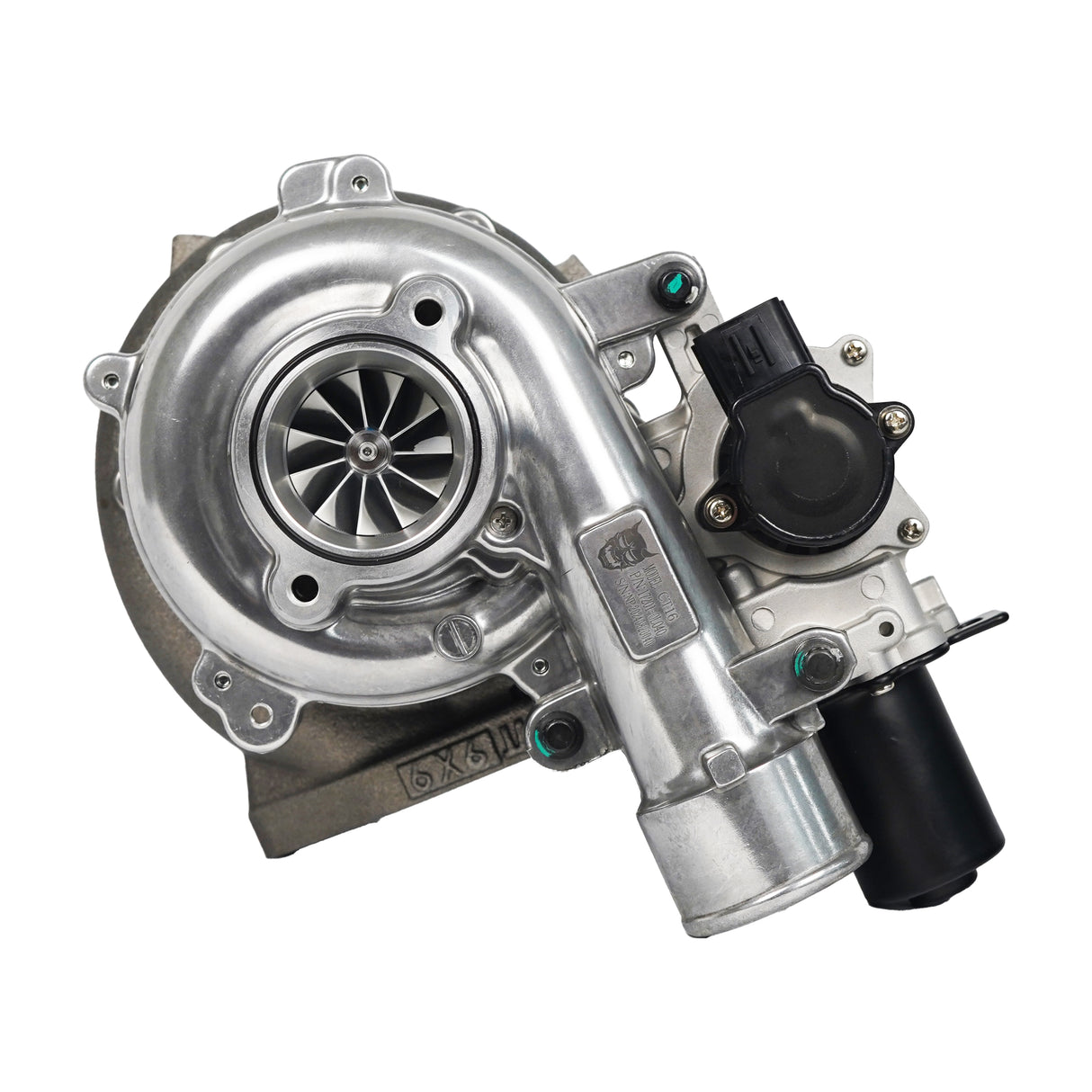

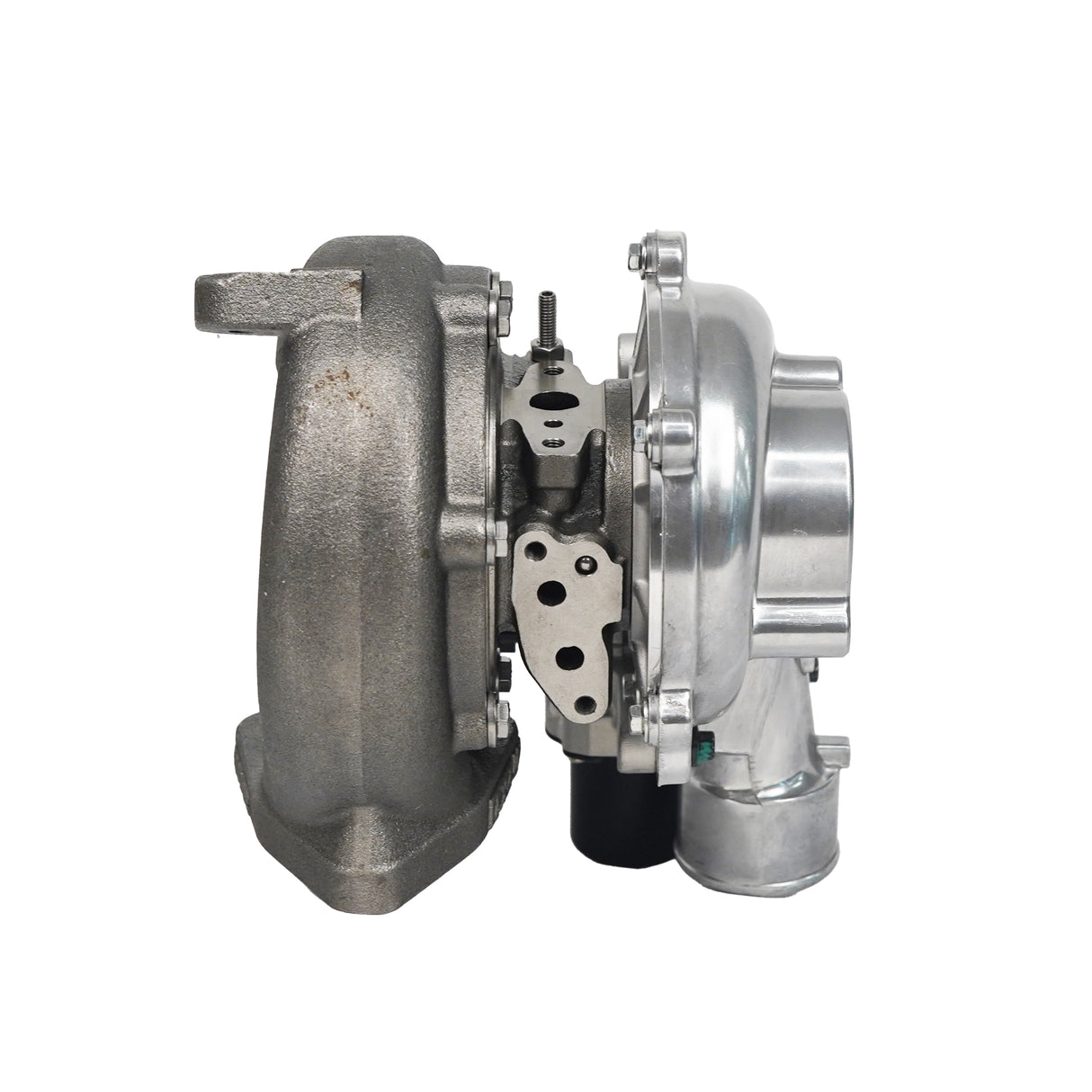

Demon Pro GEN 2 RS Turbo Charger for Toyota Prado 1KD-FTV 3.0L 30160 with Actuator and Gaskets
- Quality-tested turbo assembly
- No ECU tune required
- 24-month warranty
Pre-order
Available for pre-order. Contact us for availability.
Sold out. Ask us about restock.
Pickup available at Demon Pro Parts
Usually ready in 1 hour
Delivery and Shipping
Delivery and Shipping
WE SHIP INTERNATIONALLY!
We also offer instore pickup at: Demon Pro Parts, 1/107 Wells Rd Chelsea Heights, Vic, 3196
Need your parts ASAP? We also Offer Express Shipping at Checkout!
Want it EVEN FASTER?! Call our team today about Overnight Shipping on 03 8766 8888
Demon Pro GEN 2 RS Turbo Charger for Toyota Prado 1KD-FTV 3.0L 3016...
Contact us for availability.
Demon Pro Gen 2 Turbo
The Demon Pro race-series high-flow upgrade. For Toyota Landcruiser Prado with the 1KD-FTV 3.0L engine. See the Vehicle Fitment Guide for models and years.
-
Next-level high-flow upgrade
The next performance tier above Gen 1 in the Demon Pro range.
-
Responsive performance
A performance configuration designed to improve turbo response alongside airflow.
-
Bearing support for higher loads
Upgraded internals and bearings support demanding higher-boost operation.
Product Details
9 blades Larger High Flow Billet Wheel, 25 PSI
Product Details
9 blades Larger High Flow Billet Wheel, 25 PSITurbo Model & Part Numbers
Reference Numbers
- OEM part numbers
- 17201-30160
- 17201-30161
- 17201-30101
- 17201-30100
- Turbo part numbers
- 9B002
- TC1VED-S0017B
- TC1VEDS0017B
- VAB30017C
Turbo and OEM numbers are usually on the label or tag of your old turbo.
Technical Specifications
- Compressor wheel
- 9 blades Larger High Flow Billet Wheel
- Turbine wheel
- Hybrid Turbine Wheel
- Bearing
- 360° thrust bearing
- Max Boost
- 25 PSI
Listed hardware capability. The operating target depends on the engine, supporting parts and tune.
What’s Included
- Actuator
- Included
- Gasket set
- Included
Vehicle Fitment Guide
2 Toyota applications
Vehicle Fitment Guide
2 Toyota applications-
Toyota Landcruiser Prado2006–2009
-
Toyota Landcruiser Prado2009–2015
Some models use more than one turbo. Match your part number in Product details, or contact our team for help.
Compare Options
Standard, Gen 1, Gen 2
Compare Options
Standard, Gen 1, Gen 2| StandardFactory reference | Gen 1Street-focused upgrade | Gen 2This turboHigher-flow performance option |
|---|---|---|
| Compressor wheel | ||
| StandardFactory Cast Compressor Wheel | Gen 19 blades Performance Billet Wheel | Gen 29 blades Larger High Flow Billet Wheel |
| Turbine wheel | ||
| StandardFactory Turbine Wheel | Gen 1Hybrid Turbine Wheel | Gen 2Hybrid Turbine Wheel |
| Bearing | ||
| Standard270° Thrust Bearing | Gen 1360° thrust bearing | Gen 2360° thrust bearing |
| Max Boost | ||
| Standard14 PSI | Gen 125 PSI | Gen 225 PSI |
Common Questions
Fitment, part numbers, what’s in the box and more
Common Questions
Fitment, part numbers, what’s in the box and more
Will this turbo fit my vehicle?
For Toyota Landcruiser Prado. Check your model, year and part number in the Vehicle Fitment Guide.
Which part numbers does this turbo replace?
OEM and manufacturer part numbers are listed in Product details. Match them against your existing turbo before ordering.
What’s in the box?
- Turbocharger
- Actuator
- Gasket set
Where can I find the turbo specifications?
See the wheel and bearing details in Product details.
What is the Max Boost?
The listed Max Boost is 25 PSI. Set the operating target to suit the engine, supporting parts and tune.
Do I need an ECU tune?
No. An ECU tune is not required for installation. A suitable tune is optional if you want to optimise the setup.
Which option should I choose?
Gen 2 is the higher-flow Demon Pro option in this range. Compare the larger compressor configuration and boost capability with the standard replacement and other available options. The options we sell for this turbo are in Compare Options.
What warranty does it have?
24 months, under the Demon warranty policy.
