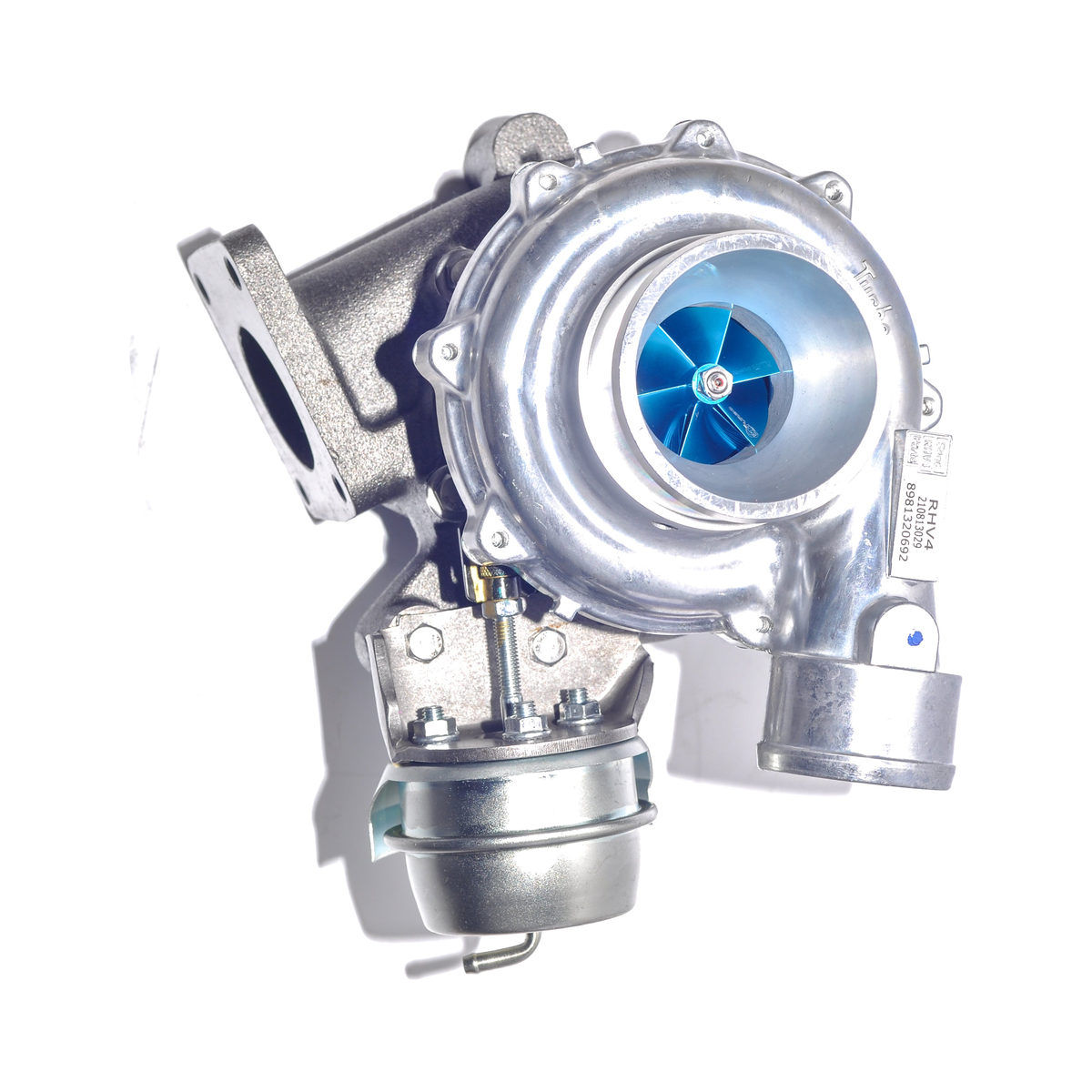

CCT Stage 1 Upgrade Hi-Flow Turbo Charger To Suit Holden Colorado, Isuzu D-Max 4JJ1 3.0L 8971320692 VIGM
- Quality-tested turbo assembly
- Factory-boost calibrated
- 24-month warranty
Pre-order
Available for pre-order. Contact us for availability.
Sold out. Ask us about restock.
Pickup available at Demon Pro Parts
Usually ready in 1 hour
Delivery and Shipping
Delivery and Shipping
WE SHIP INTERNATIONALLY!
We also offer instore pickup at: Demon Pro Parts, 1/107 Wells Rd Chelsea Heights, Vic, 3196
Need your parts ASAP? We also Offer Express Shipping at Checkout!
Want it EVEN FASTER?! Call our team today about Overnight Shipping on 03 8766 8888
CCT Stage 1 Upgrade Hi-Flow Turbo Charger To Suit Holden Colorado, ...
Contact us for availability.
Stage 1 High-Flow Turbo
A high-flow upgrade for everyday driving. For Holden Colorado, Isuzu D-Max and Isuzu MU-X with the 4JJ1TC 3.0L engine. See the Vehicle Fitment Guide for models and years.
-
Improved airflow
A high-flow upgrade for more usable everyday performance.
-
Responsive daily driving
Focused on usable response while retaining near-factory drivability.
-
OEM-style installation
An upgrade designed around the original turbo position and installation layout.
Turbo Specifications
RHV4, Billet + Slim Hub + High Blades + Extended Tips, Water & Oil Cooled
Turbo Specifications
RHV4, Billet + Slim Hub + High Blades + Extended Tips, Water & Oil CooledTurbo Model & Part Numbers
- Turbo model
- RHV4
Reference Numbers
- OEM part numbers
- 8981320692
- 8981320690
- 8981320691
- 8982356270
- 8982356271
- Turbo part numbers
- VIGM
- VIIO
- VAD20045
- V41VAT-S0045B
- V41VATS0045B
- VAD20099
Show all 8 turbo numbers
- V41VAT-S0099B
- V41VATS0099B
Turbo and OEM numbers are usually on the label or tag of your old turbo.
Technical Specifications
- Compressor wheel
- Billet + Slim Hub + High Blades + Extended Tips
- Turbine wheel
- Factory Turbine Wheel
- Bearing
- 360° Thrust Bearing
- Cooling
- Water & Oil Cooled
- Actuator type
- Vacuum Actuator
- Max Boost
- 25 PSI
The most the hardware is built for. Set your boost target to suit the engine, fuel system and tune.
What’s Included
- Actuator
- Included
- Gasket set
- Included
Vehicle Fitment Guide
4 applications
Vehicle Fitment Guide
4 applications-
Holden Colorado2010–2012
-
Isuzu D-Max2010–2012
-
Isuzu D-Max2012–2016
-
Isuzu MU-X2013–2016
Some models use more than one turbo. Match your part number in Product details, or contact our team for help.
Compare Options
Standard, Stage 1, Stage 2
Compare Options
Standard, Stage 1, Stage 2| StandardFactory reference | Stage 1This turboFirst step up | Stage 2Larger high-flow upgrade |
|---|---|---|
| Compressor wheel | ||
| StandardFactory Cast Compressor Wheel | Stage 1Billet + Slim Hub + High Blades + Extended Tips | Stage 2+4mm Billet + Slim Hub + High Blades + Extended Tips |
| Turbine wheel | ||
| StandardFactory Turbine Wheel | Stage 1Factory Turbine Wheel | Stage 2Factory Turbine Wheel |
| Bearing | ||
| Standard360° Thrust Bearing | Stage 1360° Thrust Bearing | Stage 2360° Thrust Bearing |
| Max Boost | ||
| Standard18 PSI | Stage 125 PSI | Stage 225 PSI |
Common Questions
Fitment, part numbers, fitting and more
Common Questions
Fitment, part numbers, fitting and more
Will this turbo fit my vehicle?
For Holden Colorado, Isuzu D-Max and Isuzu MU-X. Check your model, year and part number in the Vehicle Fitment Guide.
Which part numbers does this turbo replace?
OEM and manufacturer part numbers are listed in Product details. Match them against your existing turbo before ordering.
Is it a direct replacement?
It’s made to fit the listed applications in place of the original turbo. Find and fix what caused the old turbo to fail before fitting it.
What’s in the box?
- Turbocharger
- Actuator
- Gasket set
Where can I find the turbo specifications?
See the wheel and bearing details in Product details.
What is the Max Boost?
Max Boost for the Stage 1 hardware is 25 PSI. Set the final boost to suit the engine’s condition, fuel system, supporting parts and tune.
Do I need an ECU tune?
Not usually to fit it. A suitable tune can make better use of the extra airflow.
Which option should I choose?
Choose Stage 1 for a first step up from standard in daily driving. The options we sell for this turbo are in Compare Options.
What warranty does it have?
24 months, under the Demon warranty policy.
