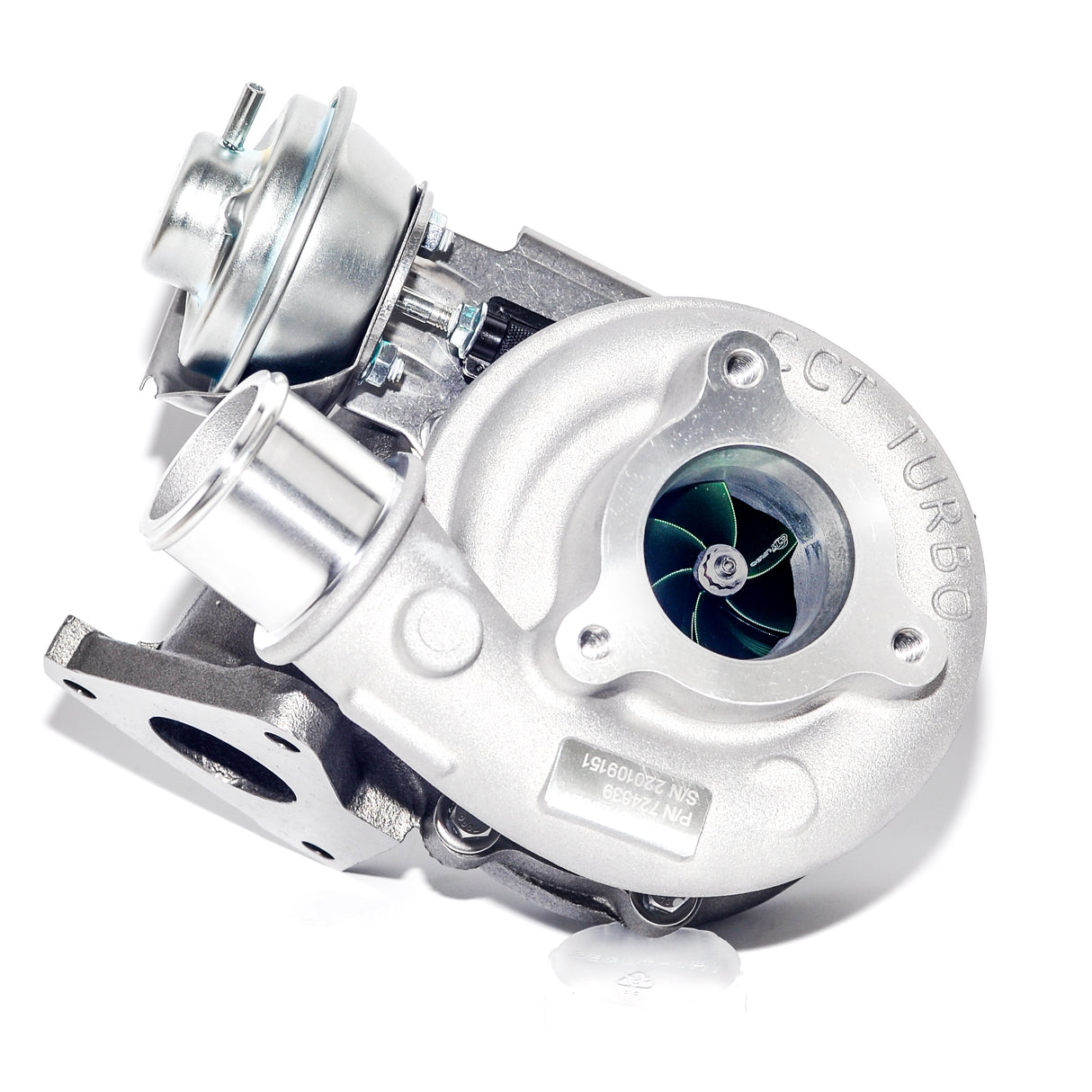

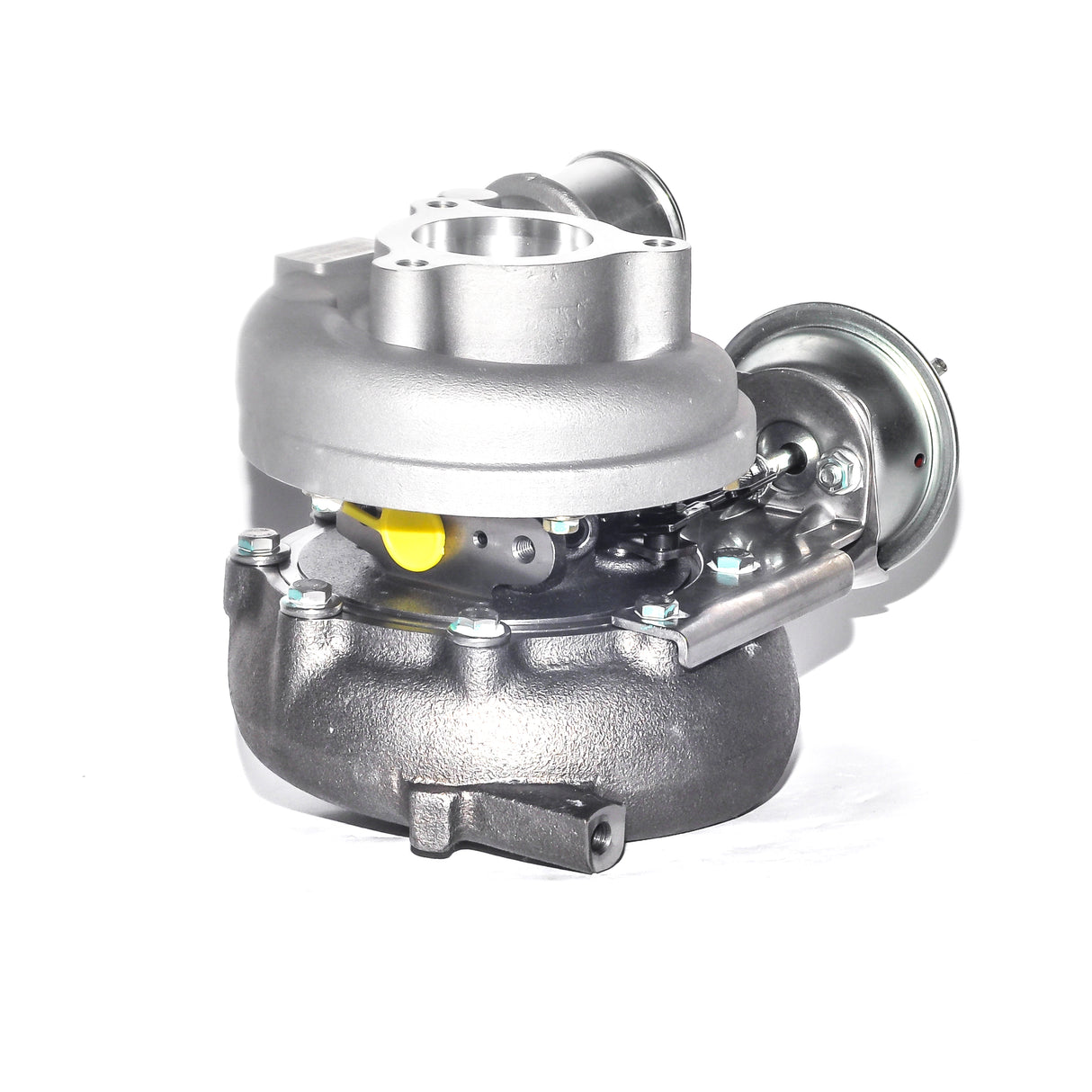

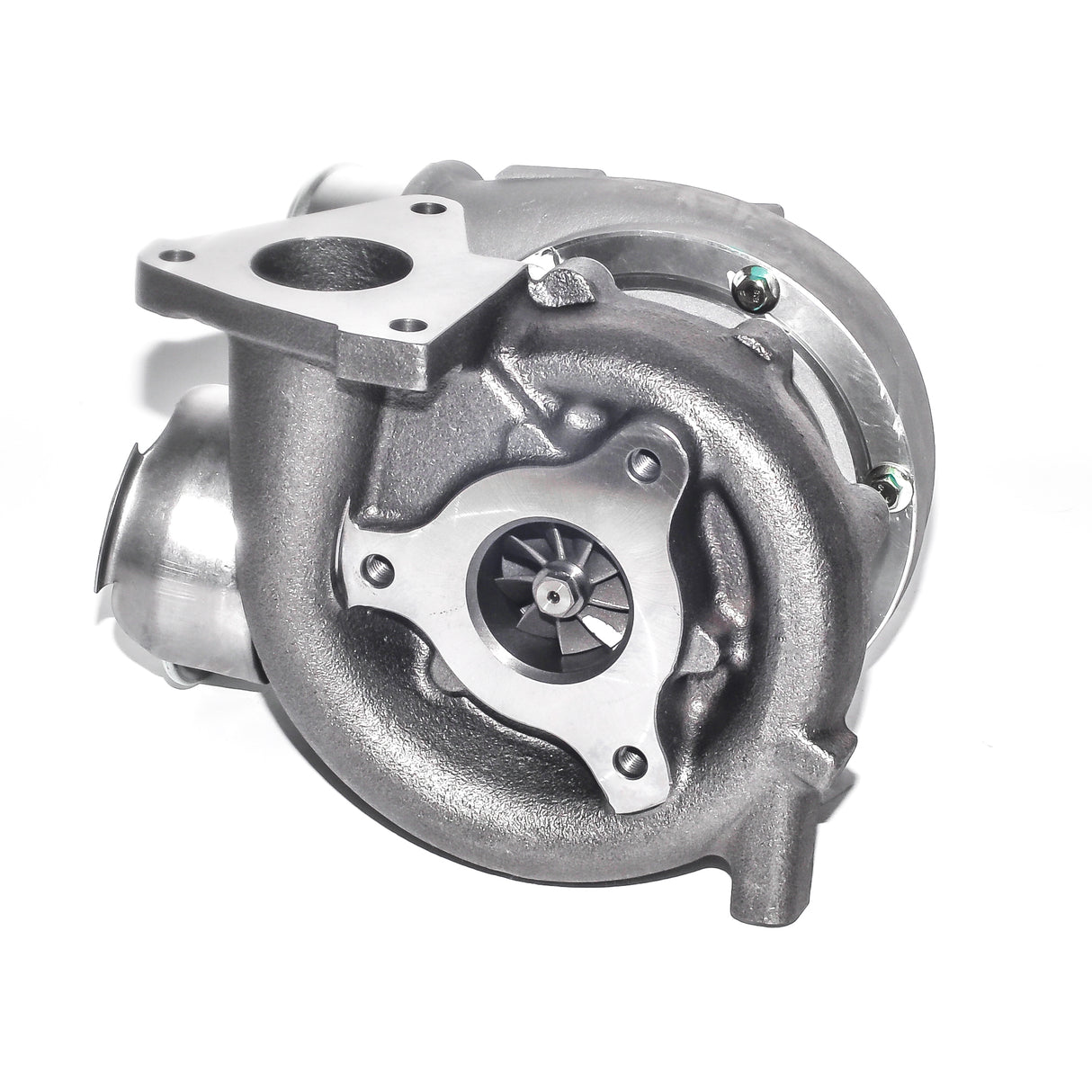

CCT Stage Two Upgrade Hi-Flow Turbo Charger To Suit Nissan GU Patrol ZD30 3.0L VC100 Oil & Water Cooled with Gaskets
- Quality-tested turbo assembly
- ECU tuning recommended
- 24-month warranty
Pre-order
Available for pre-order. Contact us for availability.
Sold out. Ask us about restock.
Pickup available at Demon Pro Parts
Usually ready in 1 hour
Delivery and Shipping
Delivery and Shipping
WE SHIP INTERNATIONALLY!
We also offer instore pickup at: Demon Pro Parts, 1/107 Wells Rd Chelsea Heights, Vic, 3196
Need your parts ASAP? We also Offer Express Shipping at Checkout!
Want it EVEN FASTER?! Call our team today about Overnight Shipping on 03 8766 8888
CCT Stage Two Upgrade Hi-Flow Turbo Charger To Suit Nissan GU Patro...
Contact us for availability.
Stage 2 High-Flow Turbo
A larger high-flow upgrade for a performance build. For Nissan Patrol with the ZD30 Di 3.0L engine. See the Vehicle Fitment Guide for models and years.
-
Higher-flow performance
Developed for builds that need more airflow than a standard replacement.
-
Greater power potential
Focused on supporting higher-output performance builds.
-
Built for increased load
An upgraded turbo configuration intended for increased operating demands.
Product Details
GT2052V, +4mm Billet + Slim Hub + High Blades + Extended Tips, Water & Oil Cooled
Product Details
GT2052V, +4mm Billet + Slim Hub + High Blades + Extended Tips, Water & Oil CooledTurbo Model & Part Numbers
- Turbo model
- GT2052V
Reference Numbers
- OEM part numbers
- 14411-VC100
- 14411-VC200
- 14411-2X90A
- 14411-2X900
- Turbo part numbers
- 705954-0008
- 705954-5008
- 705954-5008S
- 705954-0009
- 705954-5009
- 705954-5009S
Show all 21 turbo numbers
- 705954-0011
- 705954-5011
- 705954-5011S
- 705954-0013
- 705954-5013
- 705954-5013S
- 705954-0015
- 705954-5015
- 705954-5015S
- 705954-0016
- 705954-5016
- 705954-5016S
- 705954-0017
- 705954-5017
- 705954-5017S
Turbo and OEM numbers are usually on the label or tag of your old turbo.
Technical Specifications
- Compressor wheel
- +4mm Billet + Slim Hub + High Blades + Extended Tips
- Turbine wheel
- Factory Turbine Wheel
- Bearing
- 360° Thrust Bearing
- Cooling
- Water & Oil Cooled
- Actuator type
- Vacuum Actuator
- Max Boost
- 24 PSI
The most the hardware is built for. Set your boost target to suit the engine, fuel system and tune.
What’s Included
- Actuator
- Included

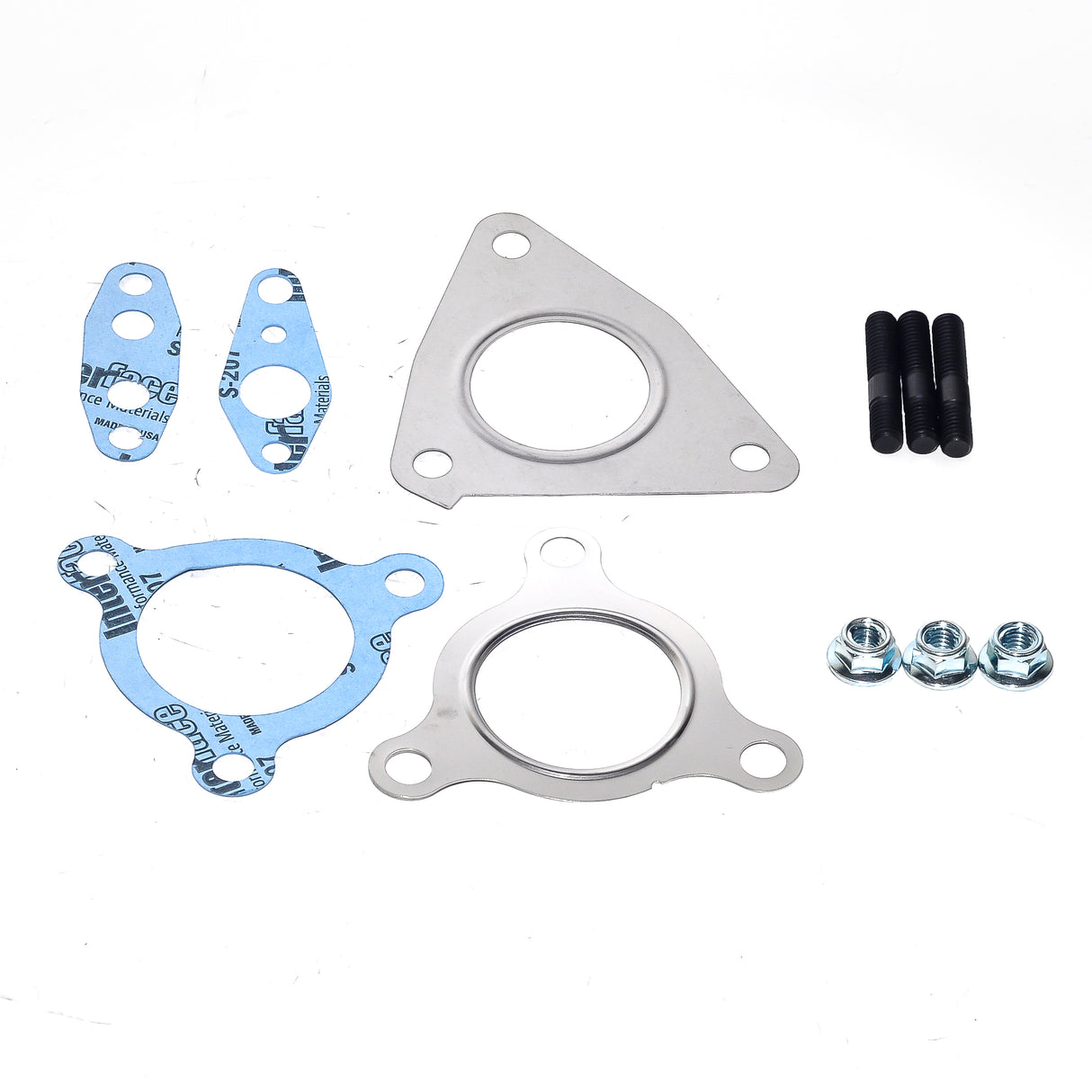

- Gasket set
- Included
Vehicle Fitment Guide
1 Nissan application
Vehicle Fitment Guide
1 Nissan application-
Nissan Patrol2000–2003
Some models use more than one turbo. Match your part number in Product details, or contact our team for help.
Compare Options
Standard, Stage 1, Stage 2
Compare Options
Standard, Stage 1, Stage 2| StandardFactory reference | Stage 1First step up | Stage 2This turboLarger high-flow upgrade |
|---|---|---|
| Compressor wheel | ||
| StandardFactory Cast Compressor Wheel | Stage 1Billet + Slim Hub + High Blades + Extended Tips | Stage 2+4mm Billet + Slim Hub + High Blades + Extended Tips |
| Turbine wheel | ||
| StandardFactory Turbine Wheel | Stage 1Factory Turbine Wheel | Stage 2Factory Turbine Wheel |
| Bearing | ||
| Standard360° Thrust Bearing | Stage 1360° Thrust Bearing | Stage 2360° Thrust Bearing |
| Max Boost | ||
| Standard14 PSI | Stage 124 PSI | Stage 224 PSI |
Common Questions
Fitment, part numbers, fitting and more
Common Questions
Fitment, part numbers, fitting and more
Will this turbo fit my vehicle?
For Nissan Patrol. Check your model, year and part number in the Vehicle Fitment Guide.
Which part numbers does this turbo replace?
OEM and manufacturer part numbers are listed in Product details. Match them against your existing turbo before ordering.
Is it a direct replacement?
It’s made to fit the listed applications in place of the original turbo. ECU tuning is recommended to get the most from the upgrade; discuss supporting parts with your installer.
What’s in the box?
- Turbocharger
- Actuator
- Gasket set
Where can I find the turbo specifications?
See the wheel and bearing details in Product details.
What is the Max Boost?
Max Boost for the Stage 2 hardware is 24 PSI. Set the final boost to suit the engine’s condition, fuel system, supporting parts and tune.
Do I need an ECU tune?
ECU tuning is recommended to make full use of this upgrade. Discuss the tune and supporting modifications with your installer.
Which option should I choose?
Choose Stage 2 for a larger high-flow upgrade. ECU tuning is recommended to make full use of it. The options we sell for this turbo are in Compare Options.
What warranty does it have?
24 months, under the Demon warranty policy.
