Diagnosing Electronic Actuator (Stepper Motor) Failures: A Guide for Demon Pro Parts Customers

Diagnosing Electronic Actuator (Stepper Motor) Failures: A Guide for Demon Pro Parts Customers

If you're experiencing turbo lag, low boost, or a check engine light, your electronic actuator might be failing. Understanding the types of actuators and common failure causes can help you diagnose and fix the issue efficiently.

Types of Electronic Actuators

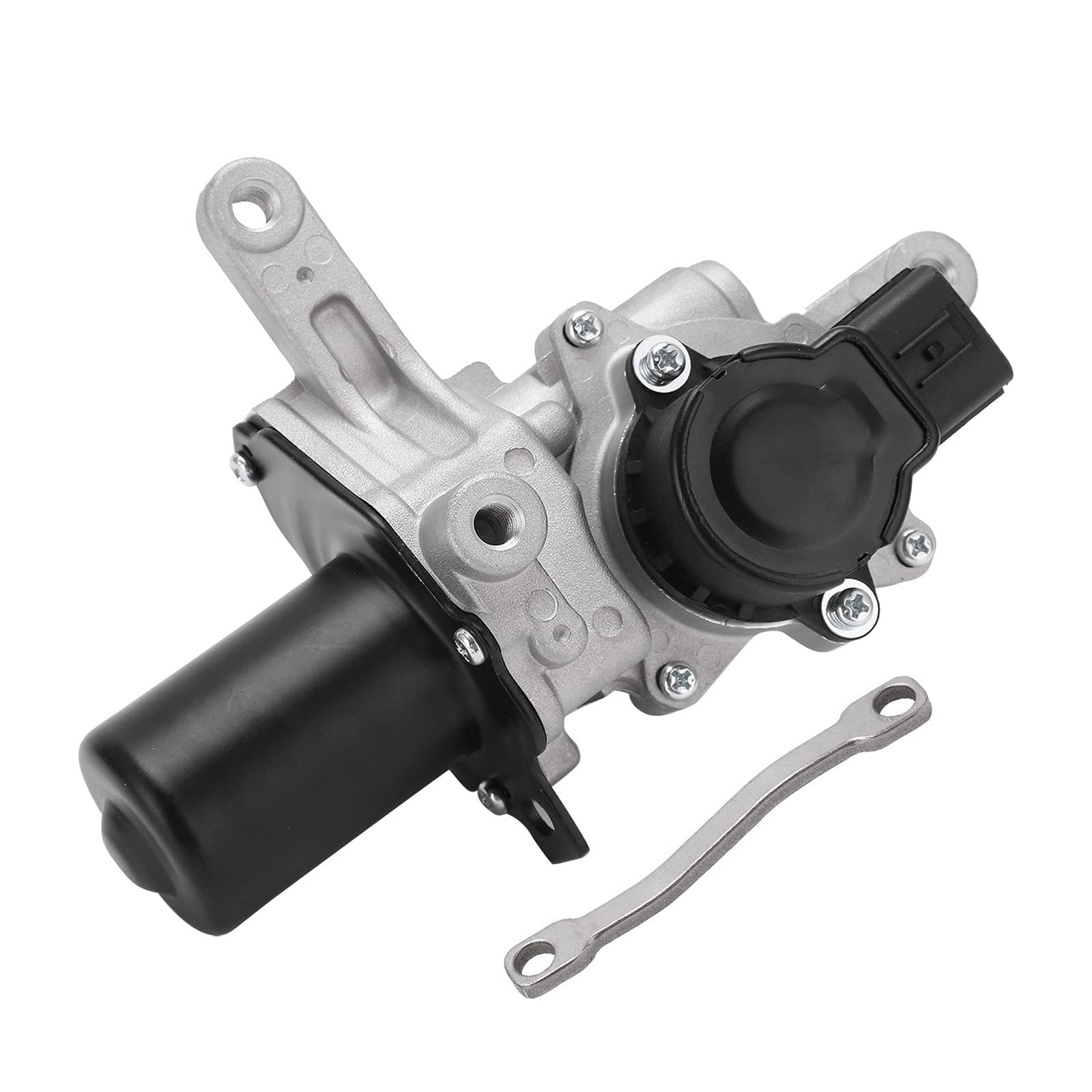

Electronic actuators are crucial components in variable geometry turbochargers (VGTs). They control the movement of the vanes inside the turbo to optimize performance. The main types include:

  • REA – Rotary Electronic Actuator

  • SREA – Simple Rotary Electronic Actuator

  • UTA – Universal Turbo Actuator

Each actuator is uniquely programmed and calibrated for a specific turbocharger. The calibration settings are stored in the actuator’s electronic control board and are not interchangeable with other actuators or gearboxes.

Common Causes of Actuator Failure

While a failed actuator can trigger engine fault codes, it's often a symptom of a deeper issue rather than the root cause. Here are the most common failure sources:

  • Gearbox Failure
    Carbon buildup or sludge can restrict the nozzle ring assembly. This restriction forces the actuator motor to work harder, leading to excess current draw and eventual motor burnout or gear failure.

  • VNT System Seizure
    Sludge or carbon buildup around the VNT (Variable Nozzle Turbine) blades can cause them to seize, which prevents the actuator from moving the vanes correctly.

  • Connector/Board Damage
    Constant heat cycles can lead to expansion and contraction, weakening electrical connections or cracking the circuit board. This might cause intermittent faults—especially when the engine is hot.

  • Improper Handling During Installation
    Dropping, hitting, or mishandling the actuator can damage internal components. This is irreversible and usually requires a full replacement.

How to Diagnose Actuator Issues

To effectively diagnose actuator-related issues, follow these steps:

  1. Scan for Fault Codes
    Use a diagnostic scanner to check for actuator or turbo-related codes like P004C, P2563, or P0046.

  2. Manual VNT Check
    Disconnect the actuator rod and manually move the lever on the turbocharger. It should move smoothly through its full range with minimal resistance.

  3. Inspect Electrical Connections
    Check for damaged wires, loose pins, or corrosion on the connectors. These can interrupt the actuator’s signal.

  4. Look for Carbon Buildup
    Excessive carbon in the turbo mechanism can block or jam vane movement, simulating actuator failure.
